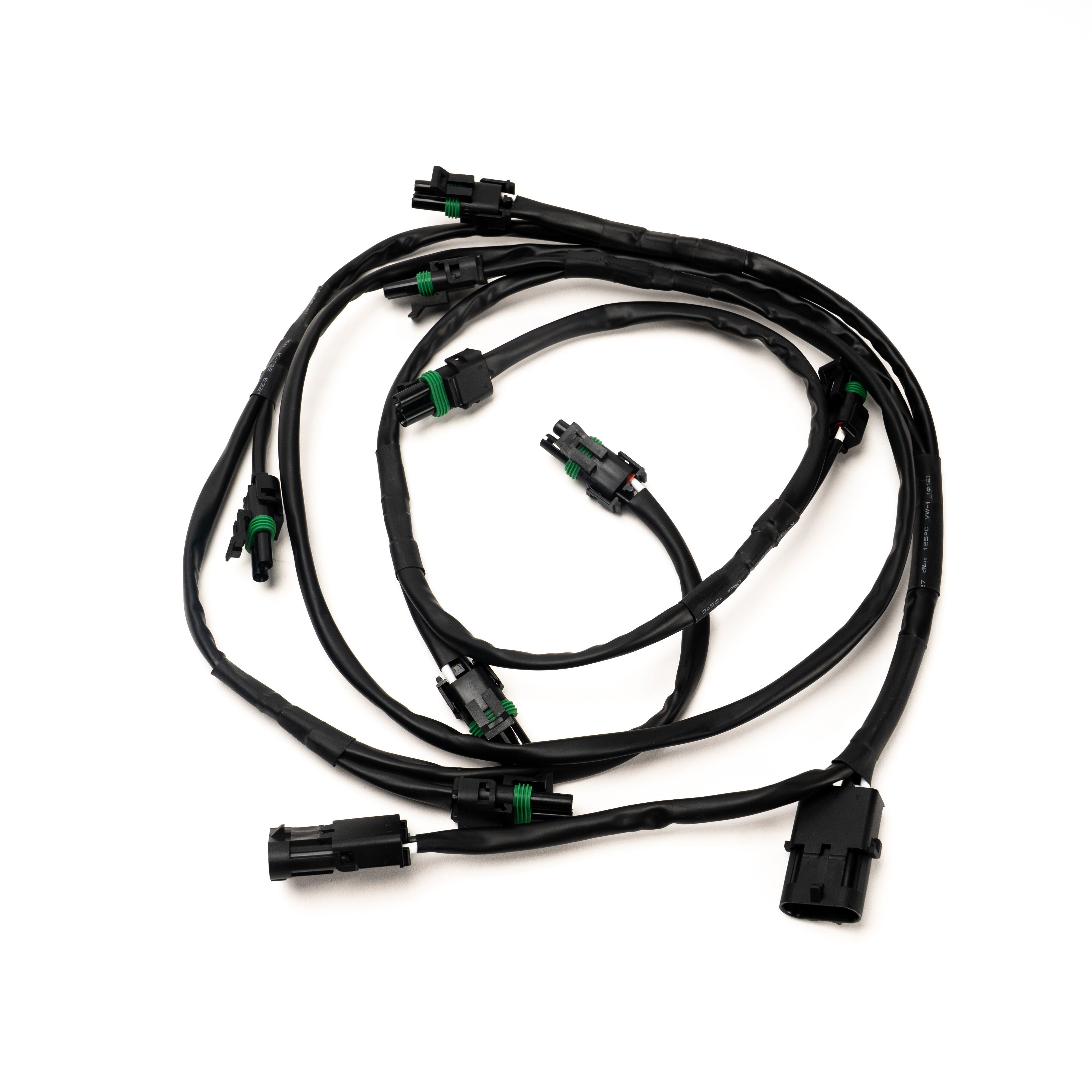

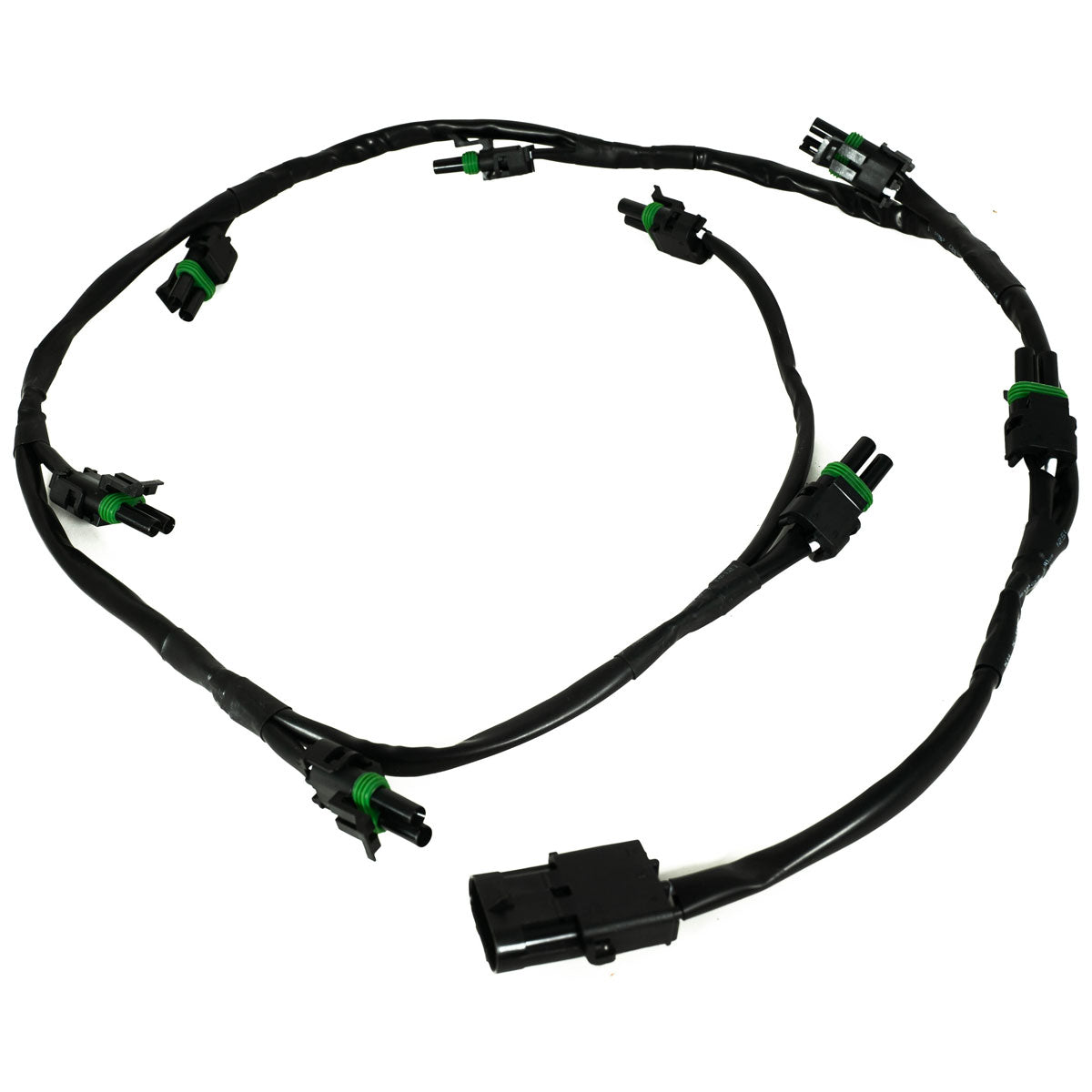

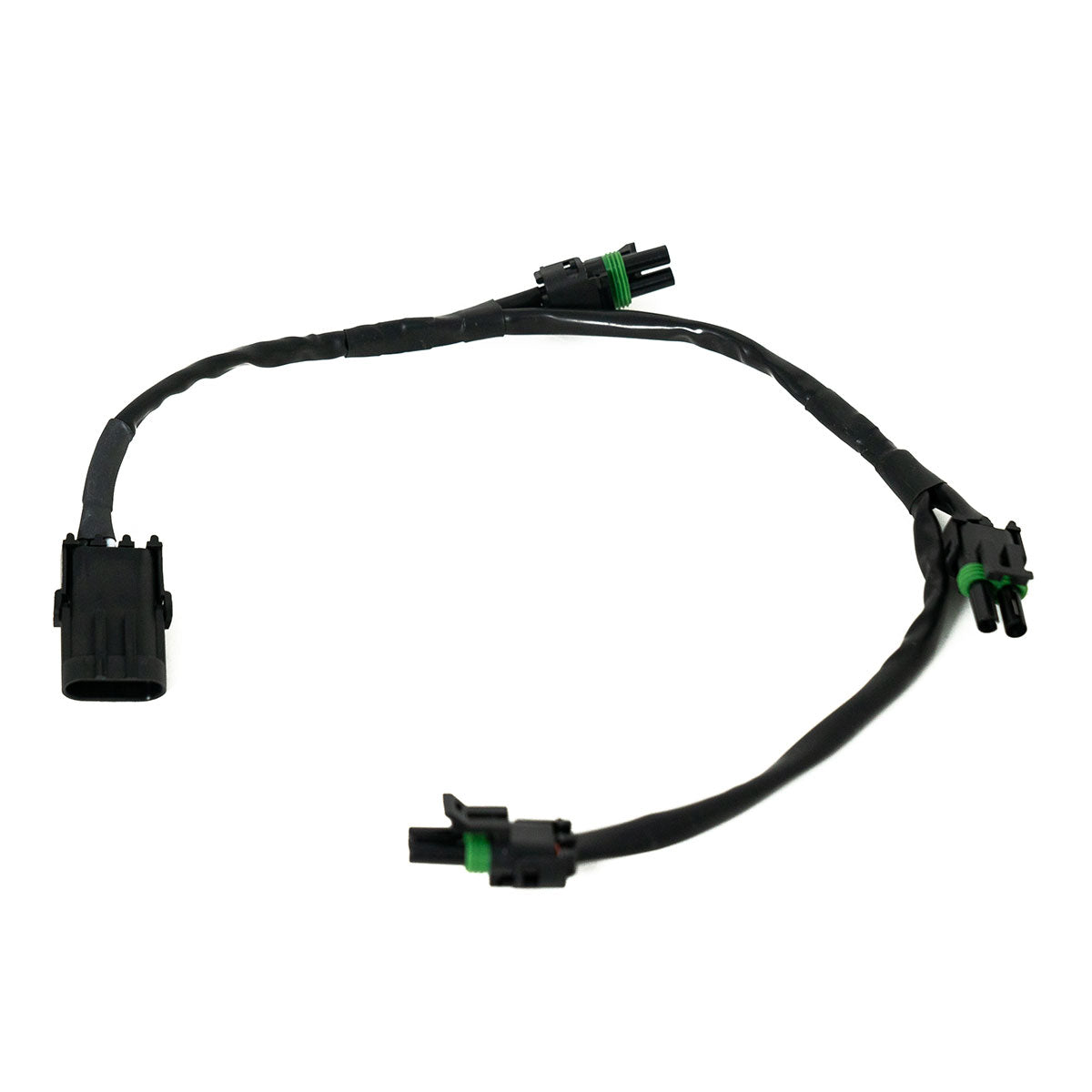

Adding lights to an XL Sport or XL Pro Linkable bar calls for enough harness connections to match the longer setup. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. The Baja Designs light bar wiring harness provides three to nine plugs so you can add lights and configure a Linkable bar up to nine lights long.
Key Features
Three- to nine-plug harness options for XL Linkable setups
Supports XL Sport and XL Pro Linkable light bars
Shared harness design for three through six lights
Separate XL Sport and XL Pro harnesses for seven through nine lights
Connections for adding lights to an XL Linkable setup
Built To Solve: XL Linkable Light Bar Wiring for Added Lights
Choose the plug count to match the desired XL Linkable bar length.
Add lights to an XL Sport or XL Pro Linkable setup.
Use a shared harness option for three through six lights.
Select the light-specific harness for a seven- to nine-light bar.
Best For: XL Sport and XL Pro Linkable Bar Builders
XL Sport owners adding lights to a Linkable bar
XL Pro owners configuring a Linkable bar with up to nine lights
Builders choosing a shared three- to six-plug harness
Builders selecting a Sport- or Pro-specific seven- to nine-plug harness
Specifications
Plug count options: 3 to 9 plugs
Maximum light count: 9 lights
Light compatibility: XL Sport and XL Pro Linkable
Fitment
Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
How many plugs can I choose?
Harness options range from three to nine plugs.
Can this harness configure a bar with more than nine lights?
No. The stated maximum is nine lights.
Is the seven-light harness the same for XL Sport and XL Pro?
No. Seven- through nine-light harnesses are specific to XL Sport or XL Pro.
Can I use the same harness option for a four-light XL Sport or XL Pro bar?
Yes. The three- through six-light harness options are shared between XL Sport and XL Pro.
How do I choose a plug count for my Linkable bar?
Choose the harness according to the desired bar length, from three to nine plugs.
Why Baja Designs
Baja Designs offers shared XL Sport and XL Pro harnesses for three through six lights, with separate versions for seven through nine.
Configure Your XL Linkable Light Bar Wiring
Choose the plug count, for seven to nine lights, the XL Sport or XL Pro version for your bar.
