Traffic Light Controller Smd Quite 37+ Modes Sequencer Board 3 Channel Ac Voltage 100-240Vac 50Hz 60Hz Red Green Yellow Ryg Ac Light Control No Coding Required
No reviews
$65.44
Regular price
$93.49
-30%
WELCOME5: Use code WELCOME5 for 5% off on your first order
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Vendor: Traffic Light Controller
Type: Flashlights & Emergency Lights
Sku: WBLSDB092MWM7XC
Available: Available
Shipping information
- No EU import duties. - Ships within 1-2 business days. - Ships in our fully recyclable and biodegradable signature boxes. - International orders will incur shipping fees, which are calculated at checkout. International delivery typically takes 8-12 business days.
Traffic Light Controller Smd Quite 37+ Modes Sequencer Board 3 Channel Ac Voltage 100-240Vac 50Hz 60Hz Red Green Yellow Ryg Ac Light Control No Coding Required

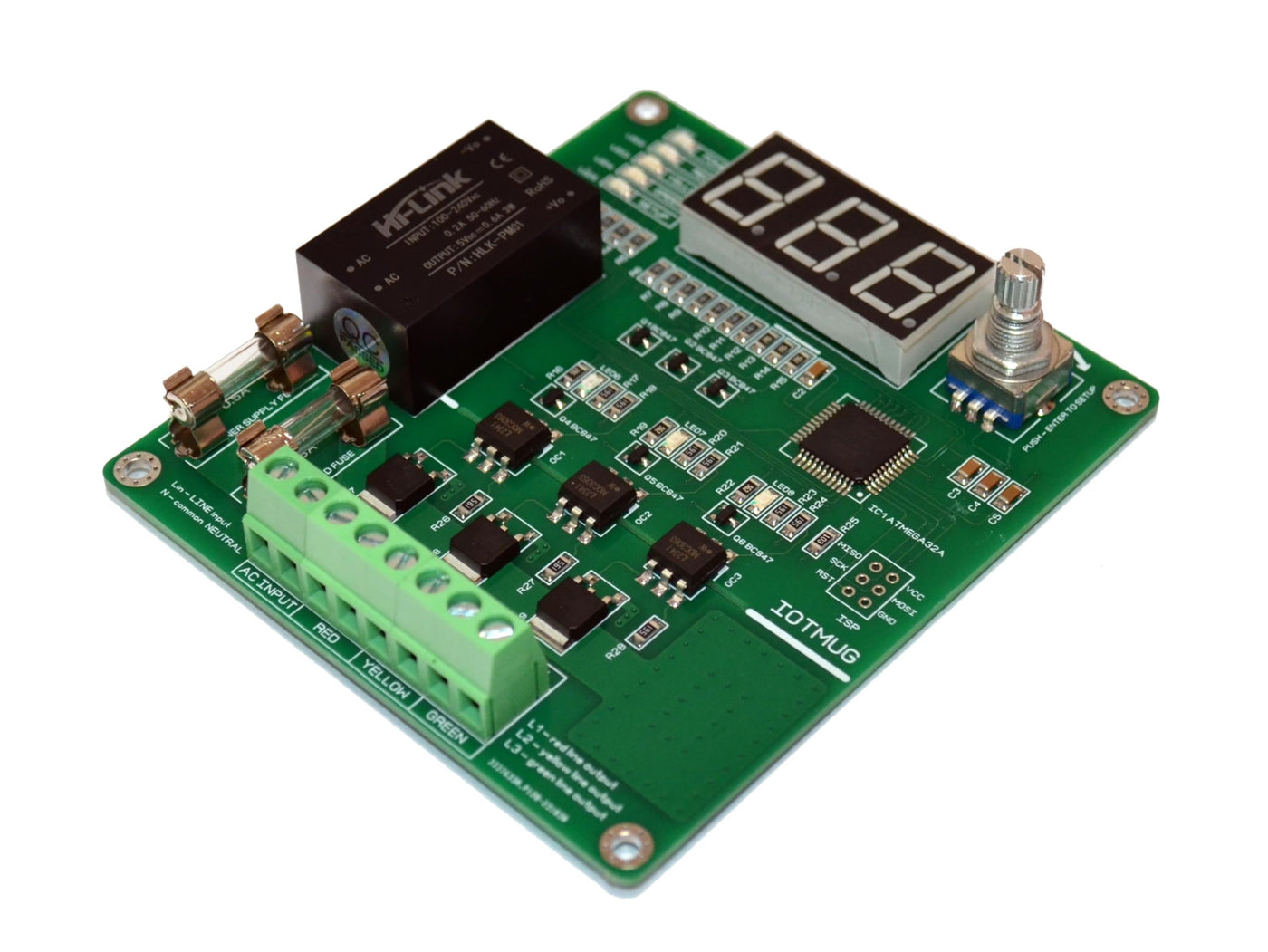

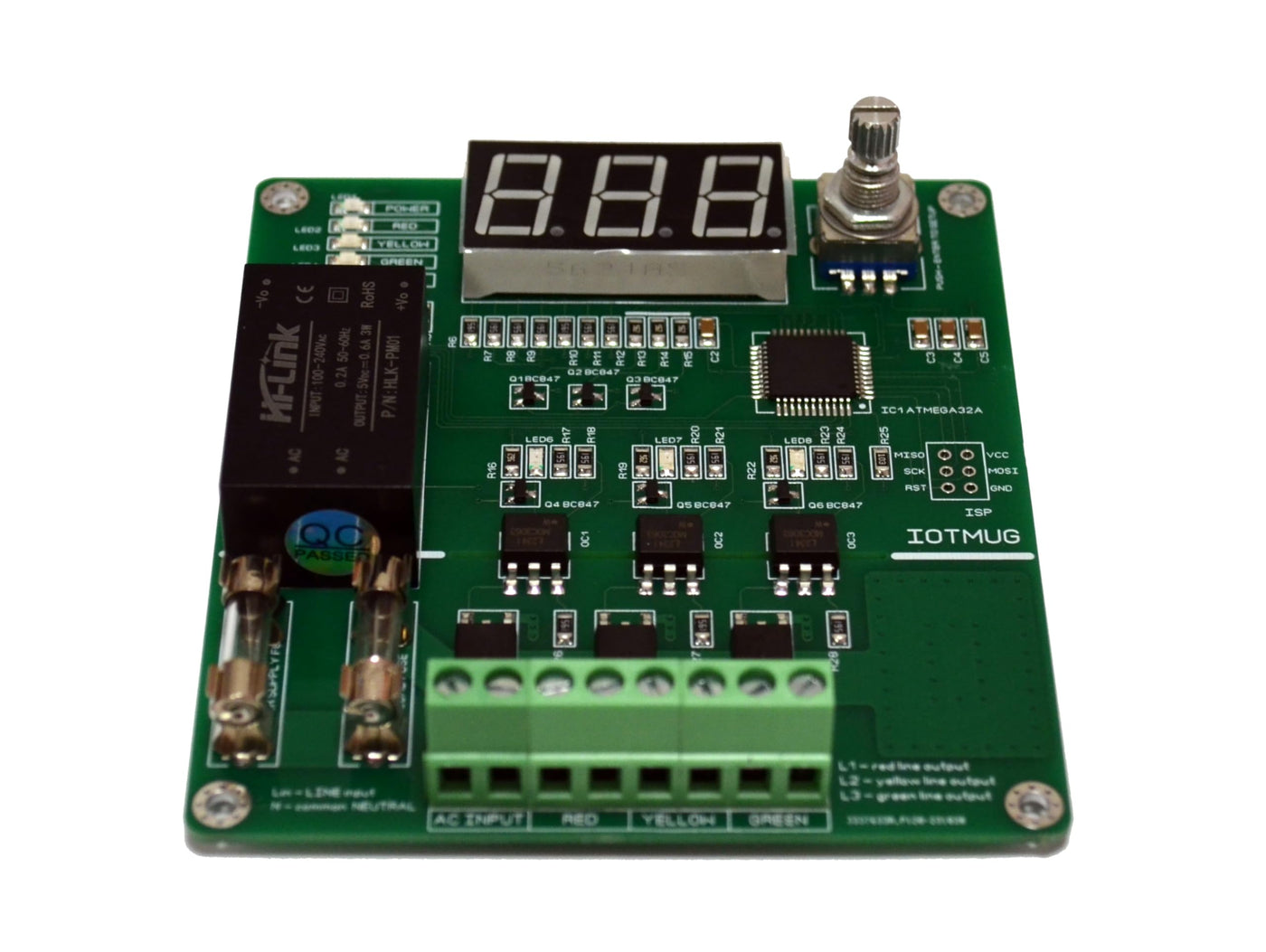

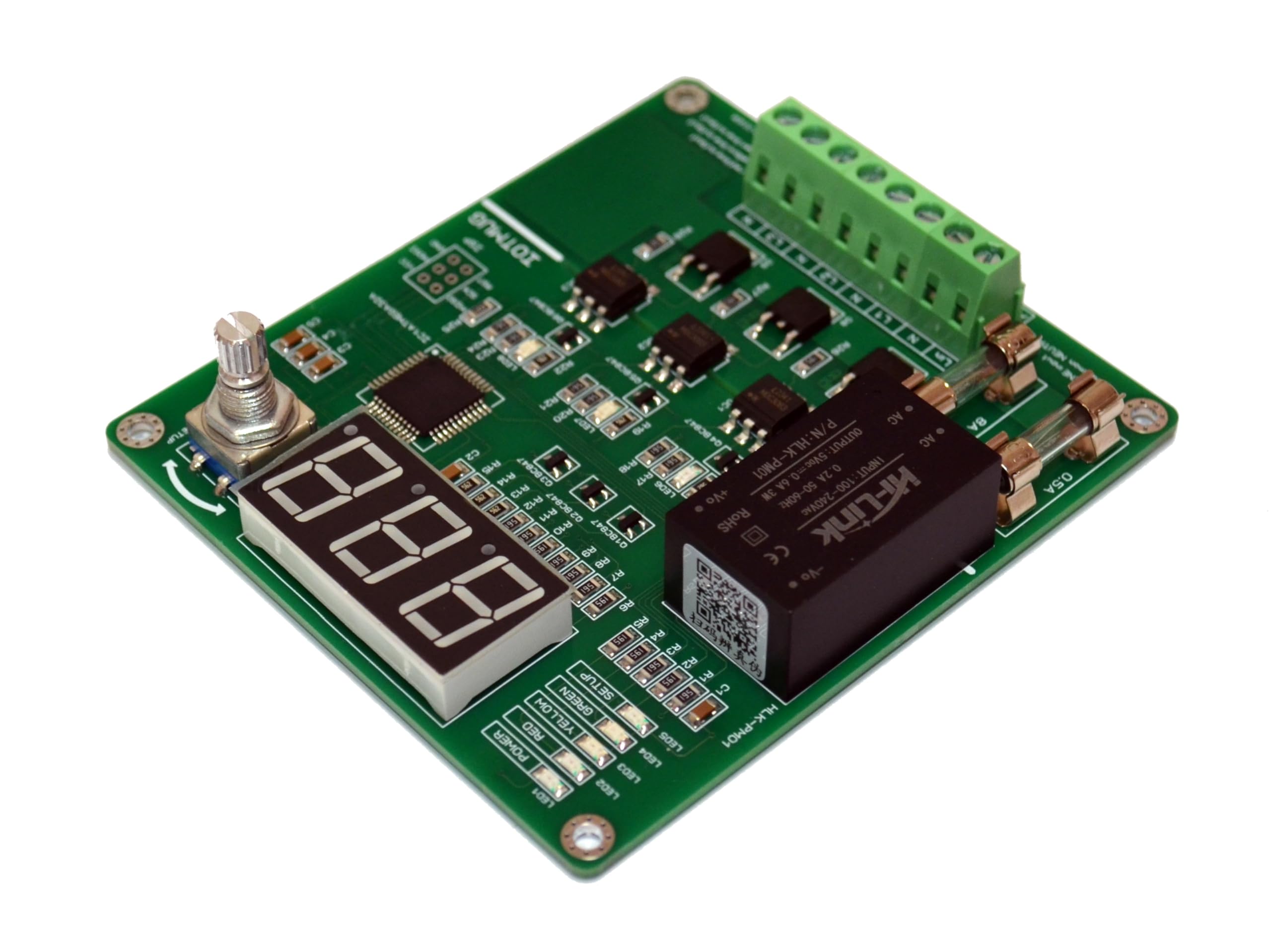

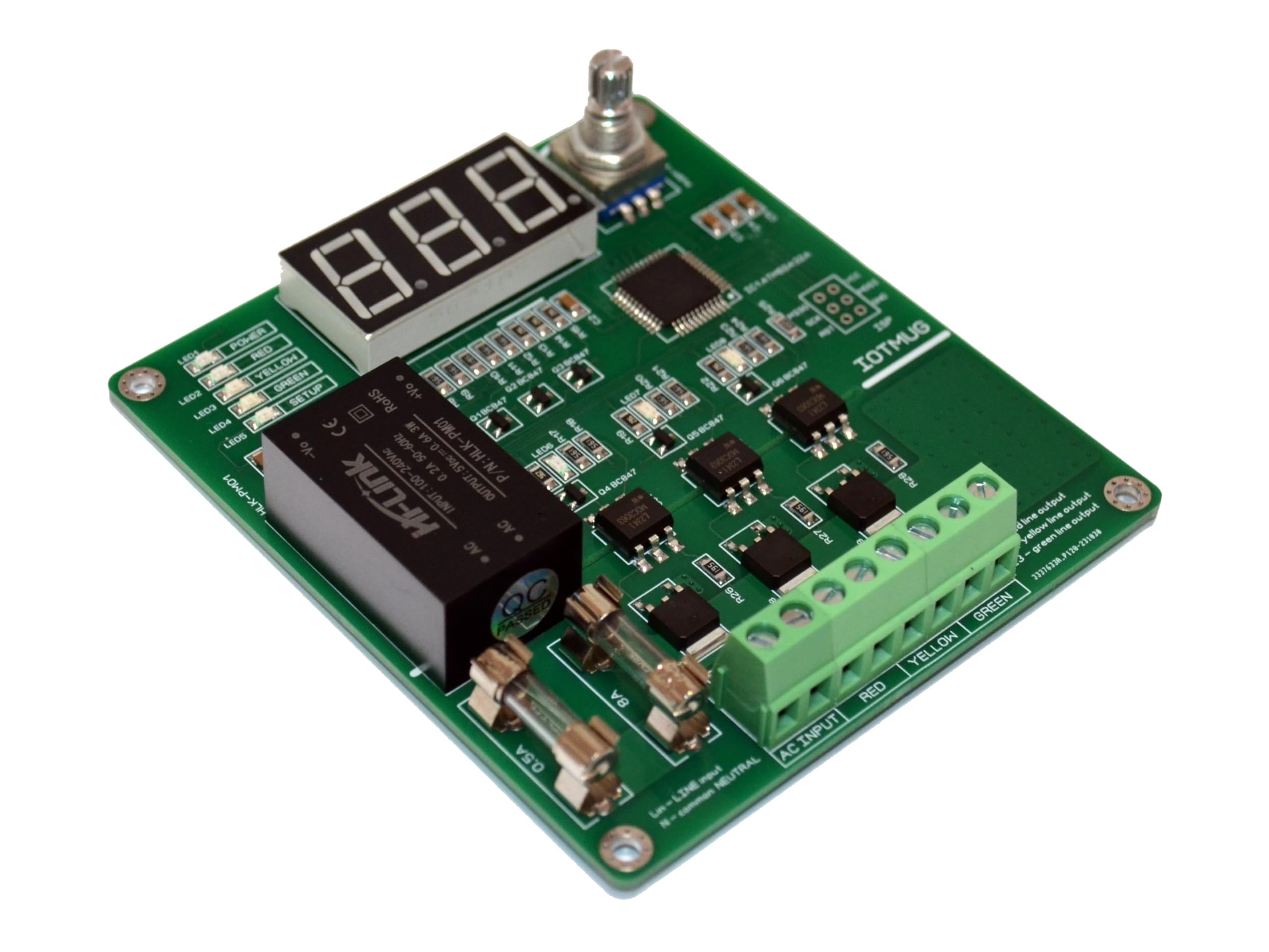

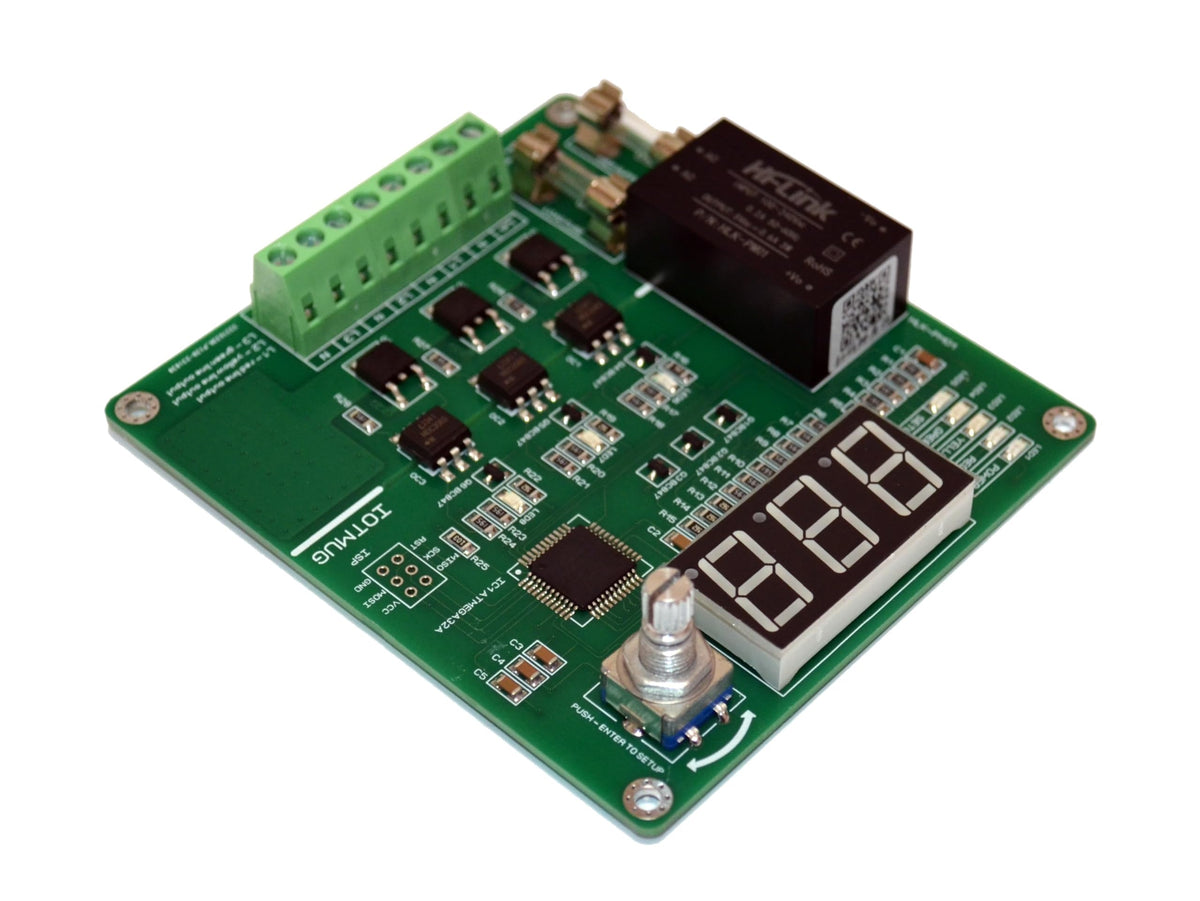

EASY programming with DISPLAY. Tons of mode for every kind of need. 3CH Traffic Light Controller for Manual Programming Our 3 Channel Traffic Light Controller is the perfect solution for all of your traffic signal needs. After unplug the power, it remembers the last mode it was on. Accepting standard 120VAC and 240VAC line voltage, this controller provides 500 Watts per channel and will drive full-sized non-dimmable LED’s and incandescent traffic lights (this includes all household incandescent and LED bulbs). This board is based with the latest solid state relays. Solid state relays technology means quiet, effortless switching for many years. Now is very simple to programming all traffic lights timings. There are 37+ custom sequences packed into our controller, which are easily changed with the push of a encoder (button). - Device specification: - PCB board dimension 90mm x 100mm - PCB Board Material 1.6 mm FR-4, with solder mask & silk screen. - Supply Voltage: 100VAC to 240VAC (50Hz60Hz). - Delay Range: 0 255 seconds for each color (RED, YELLOW and GREEN), depends on mode. - Input Connector 14-26AWG, 250VAC @ 16A screw terminals. - Output Connectors 14-26AWG, 250VAC @ 16A screw terminals. - Safety fuse 8A. - Unit Weight: 50 gramms.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Q: What is the voltage range supported by the Traffic Light Controller?A: The Traffic Light Controller operates on a supply voltage range of 100VAC to 240VAC, compatible with both 50Hz and 60Hz frequency.
Q: How does the programming work for the traffic light sequences?A: Programming is easy with a pushbutton control (encoder) and DISPLAY. The controller comes with 37+ custom sequences that can be changed simply by pressing the encoder button.
Q: Can this controller be used for different types of traffic lights?A: Yes, this controller can drive full-sized non-dimmable LEDs and incandescent traffic lights. It is versatile enough for multiple applications, including 3 Channel, 2 Channel for railroads, or 1 Channel configurations.
Q: What is the maximum delay time for each color in the traffic light sequences?A: The delay range for each color (RED, YELLOW, and GREEN) is adjustable from 0 to 255 seconds, depending on the selected mode.
Q: Is the Traffic Light Controller safe to use?A: Yes, the controller is equipped with an 8A safety fuse and uses solid-state relay technology, ensuring quiet and reliable operation for many years.
