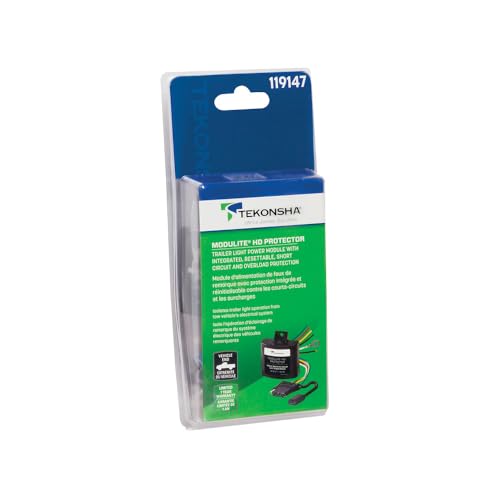

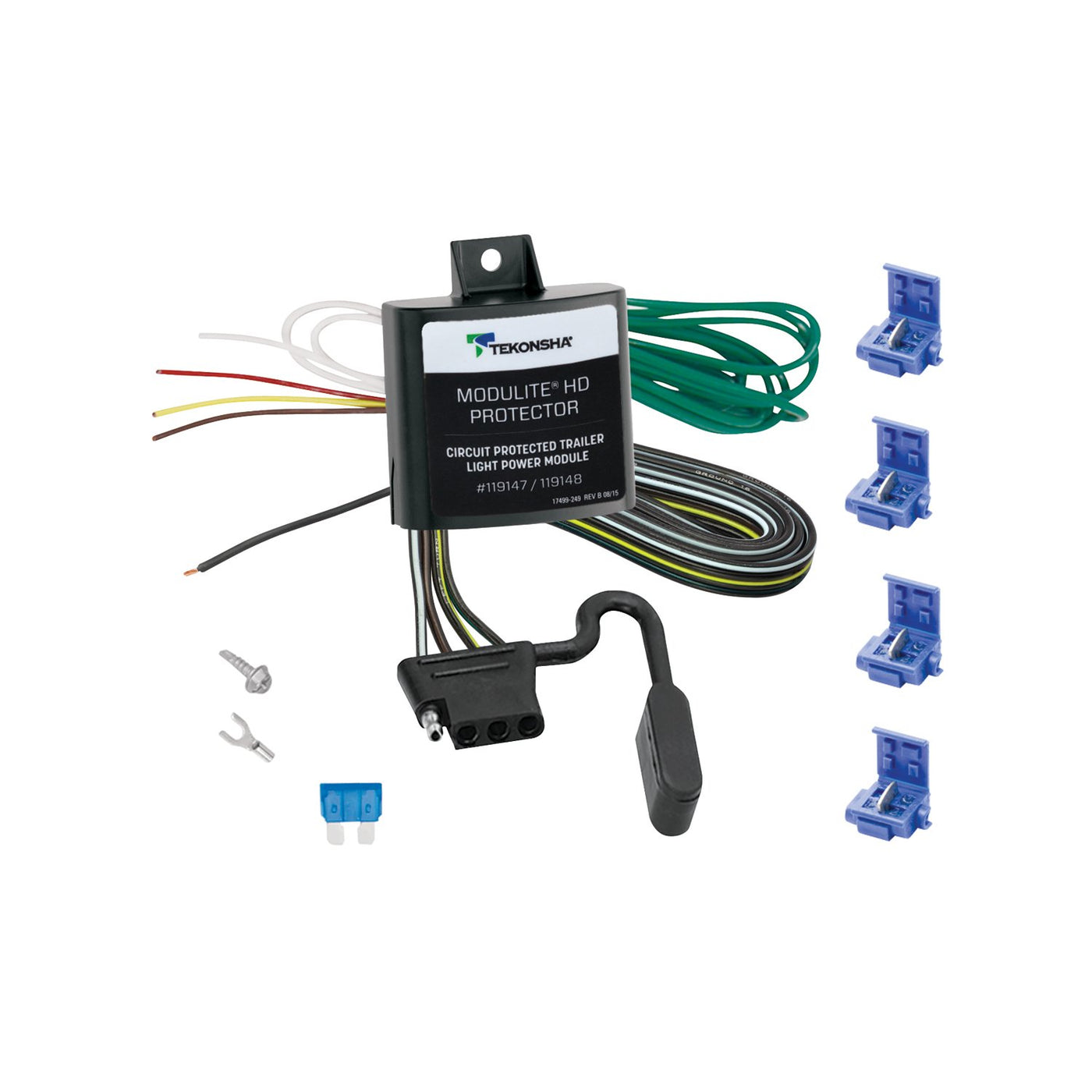

Tekonsha 119147 Modulite Hd Protector Trailer Light Power Module
No reviews
$69.28
Regular price
$98.97
-29%
WELCOME5: Use code WELCOME5 for 5% off on your first order
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Vendor: Tekonsha
Type: Lighting & Electrical
Sku: WBLSDB00ASY29C0
Available: Available
Shipping information
- No EU import duties. - Ships within 1-2 business days. - Ships in our fully recyclable and biodegradable signature boxes. - International orders will incur shipping fees, which are calculated at checkout. International delivery typically takes 8-12 business days.
ModuLite HD Power Modules use a direct connection to the tow vehicle's battery to power the trailer's stop, turn, tail and running lights without overloading vehicle electrical systems. Use a ModuLite module when: your trailer has more than one light assembly per side, and is equipped with multiple clearance or running lights; if tow vehicle tows a variety of trailers; if tow vehicle has 'lamp out' sensors or other sensitive electronics that could be damaged by increased electrical draw. ModuLite has integrated, re-settable short circuit and overload protection - safeguards itself and the tow vehicle from shorts and wiring installation mishaps. Rated at up to 4.2 amps for turn/stop circuits and 7.5 amps for the taillight circuit. Works on vehicles with pulse width modulation (PWM) taillights, ensuring full brightness of the trailer lights during operation. Adapts import and domestic vehicles with separate turn and stop lights (3 wire system) to standard trailer taillight wiring (2 wire system). Compatible with either LED and/or incandescent bulbs on both tow vehicle and trailer. Will not work with vehicles that have a low-side switch or multiplex lighting system. Comprehensive instructions included. Backed by Tekonsha. From it's humble origins as a manufacturer of RV stairs and steps in 1964, Tekonsha has evolved to become a trusted name in towing safety. The core product line consists of brake controllers, electrical wiring and trailer brakes. The Tekonsha line has long been trusted by professional towers and weekend warriors for worry-free travel.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Q: What is the Tekonsha 119147 ModuLite HD Protector used for?A: The Tekonsha 119147 ModuLite HD Protector is designed to power your trailer's stop, turn, tail, and running lights directly from the tow vehicle's battery, preventing overload of the vehicle's electrical system.
Q: Is the ModuLite HD compatible with all types of vehicles?A: The ModuLite HD is compatible with vehicles that have separate turn and stop lights (3 wire system) and works on both import and domestic vehicles. However, it will not function with vehicles that utilize a low-side switch or multiplex lighting system.
Q: How does the short circuit and overload protection work in the ModuLite HD?A: The ModuLite HD features integrated, re-settable short circuit and overload protection, which safeguards both the module and the tow vehicle from electrical shorts and wiring mishaps during installation and operation.
Q: Can I use LED bulbs with the Tekonsha ModuLite HD?A: Yes, the Tekonsha 119147 ModuLite HD is designed to work with both LED and incandescent bulbs for both the tow vehicle and the trailer, providing versatility for different lighting systems.
Q: What are the amperage ratings for the circuits on the ModuLite HD?A: The Tekonsha ModuLite HD is rated for up to 4.2 amps for turn and stop circuits and 7.5 amps for the taillight circuit, making it suitable for a variety of trailer light configurations.
