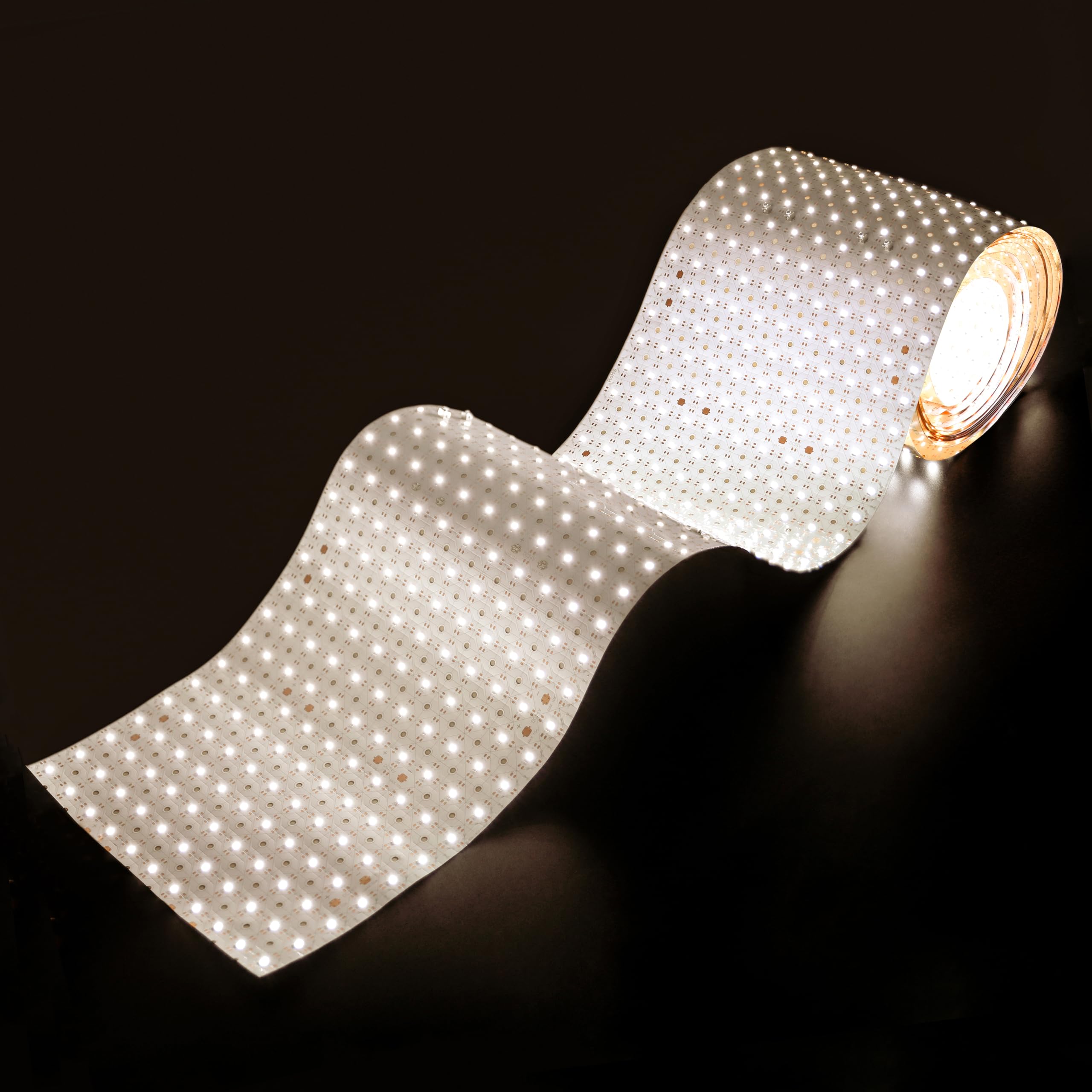

Illuminate your space with our UL-Listed LED backlight sheet, emitting super bright 4000K neutral white light at 90+RA, 24V, 240W. This paper-thin, flexible, foldable, and cuttable LED panel light is perfect for backlighting translucent materials like countertops, onyx, or glass. Ideal for kitchens, bars, or commercial displays, its dimmable for customizable ambiance and includes an accessory pack for easy installation. Specifications: Light Color: 4000K Neutral White Sheet Size: 5m(L)X240mm(W)X8mm(H) / 196 (L)X9.45 (W)X0.3 (H) LED Chip: SMD 2835 LED Quantity: 2640 LED Chips Input Voltage: DC24V Working Power: 240W per Sheet Current: 10A Cut Unit: 1 LED (0.85x 0.86) CRI: 95+ Lumen: 24000LM Waterproof Rating: IP20 Lifespan: 50,000+hours Warranty:2 Years Listing: 1 pc 4000K neutral white 24V large LED sheet roll (L197 x W9.45 x H0.3 inches) 5 pcs 500 mm long power wires 5 pcs 65 mm long sheet-to-sheet connect wires 80 pcs screws 80 pcs screw shims 80 pcs 8mm high anti-collision silicone bumpers Please note that power transformer and controller are not included. Usage and Instructions: 1.Measure the size of the board you want to paste LED backlight sheet on, and determine the size and quantity of LED sheets you need to purchase accordingly. 2.Connect LED sheet lights together by wire or connector 3.Choose right power supply and controller for LED panel sheet. Principle: The voltage of the power supply should be the same as the voltage of LED sheet. And the driver wattage should be 1.2 times the the total wattage of LED sheets. For example, when you need to power 2 pieces of 24V 240W LED lighting sheets, the voltage of power supply should the same, also 24V. And the total wattage of 4 pieces 28W LED sheets is 2pcs x 240W=480W. So the wattage of power supply will be 480W x 1.2=576W. (Or a little bit above) Recommend V1-K dimmer to adjust brightness. 4.Connect power supply and controller to LED light sheet panel, turn them on and ready for use. Note: 1.Please operate the connection while the power is off. 2.Please make sure that the working environment is clean and dry. 3.Please kindly prepare a 24V power transformer in advance, as it is not included. 4.If you need to adjust brightness of this sheet LED, a dimmer is necessary. 5. To prevent voltage drop, never connect more than 2 sheets 32.8 ft (10 m) in one line.
