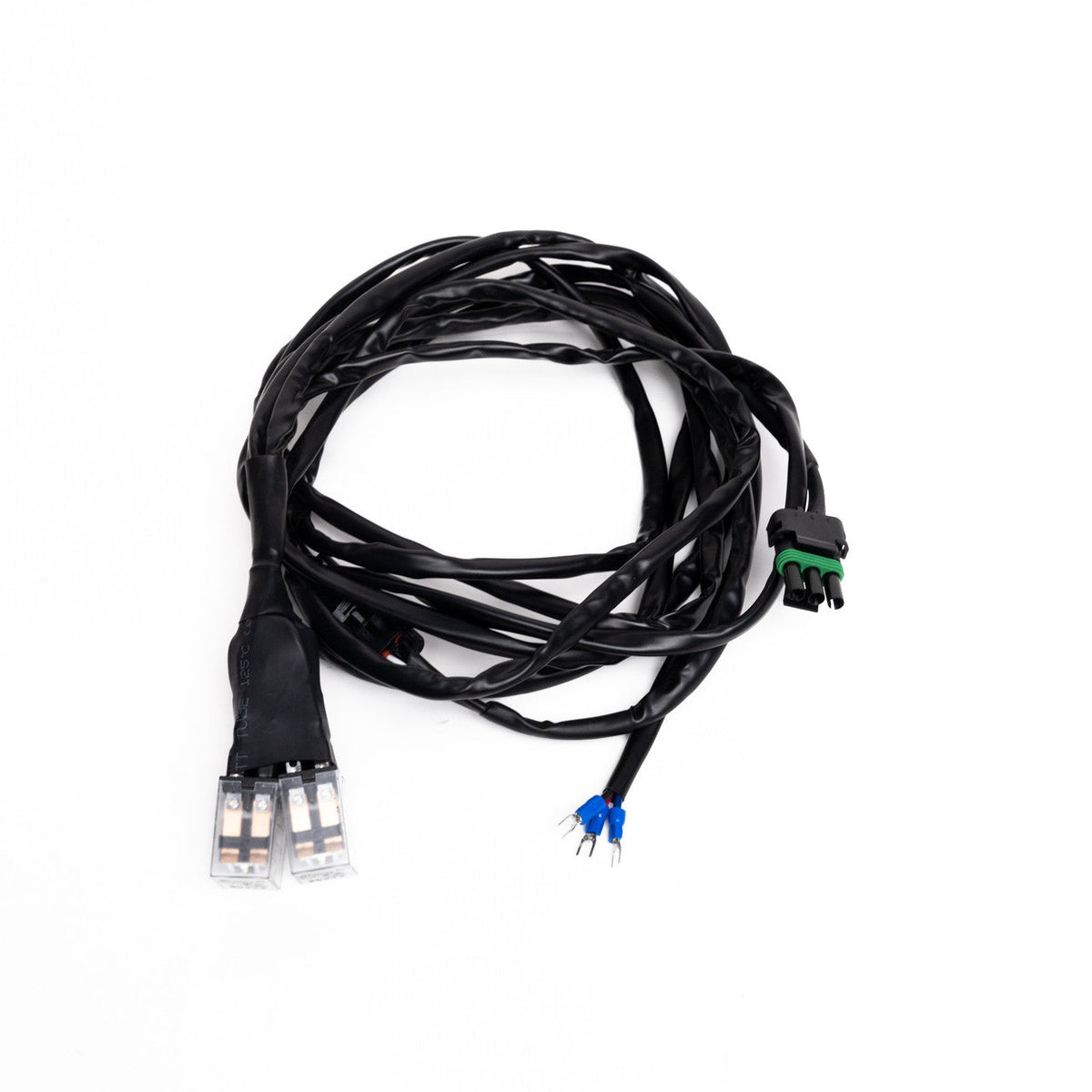

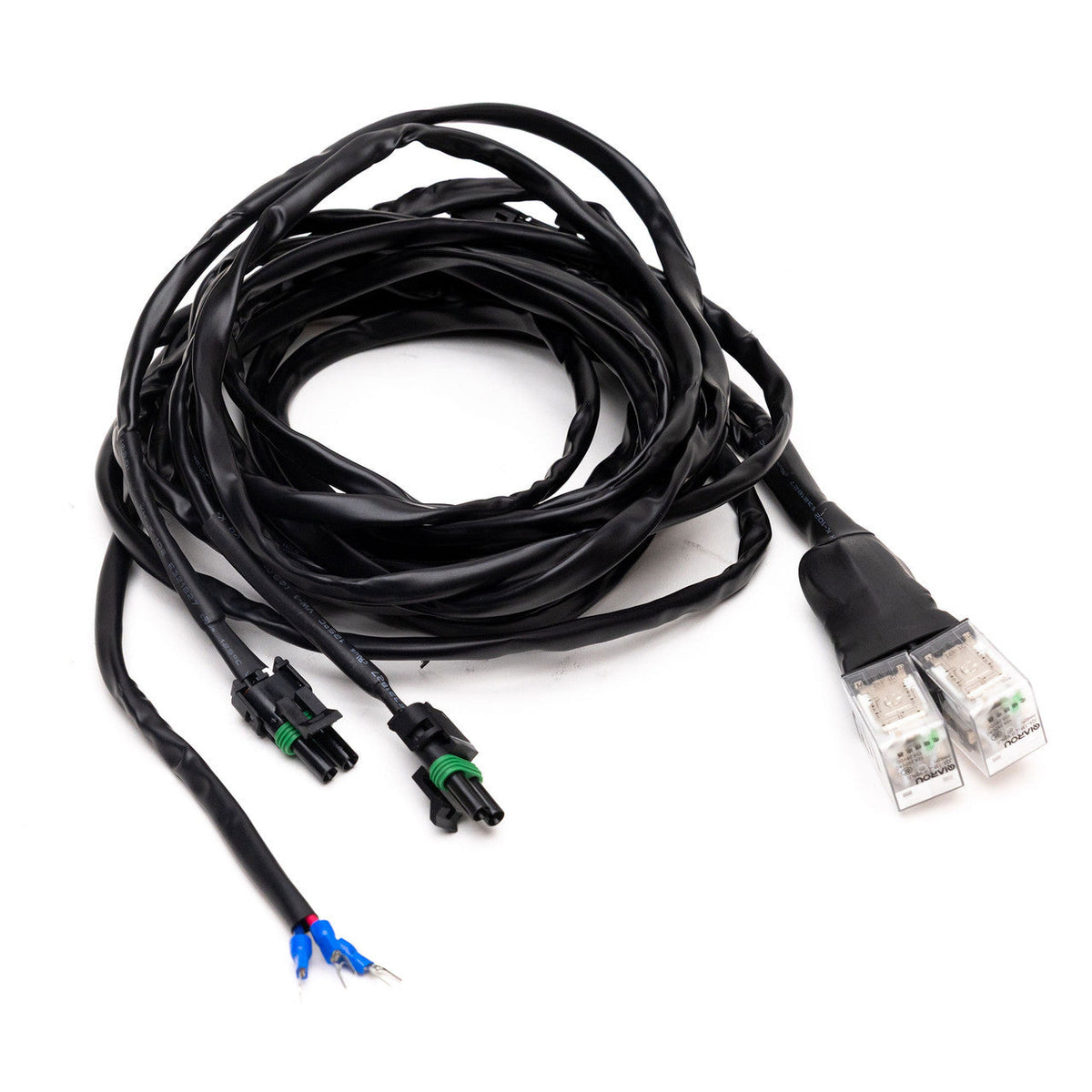

Moving REFLEX light actuators up and down through a power management system requires a wiring connection between the actuators and the control module. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. The Baja Designs REFLEX actuator wiring harness connects the actuators to a power management system so the control module can operate their up and down movement.
Key Features
Control actuator movement through power management systems such as sPOD and Switch Pros
Single/Pair harness powers one or two actuators in sync
3–8 Light harness pairs with an actuator linking harness to control three to eight actuators
Single-lead, 3-pin connection on the 3–8 Light harness
Single/Pair harness works with single and pair lighting setups, light bars and A-pillar kits
Extra lead can be tucked away on a 10-inch light bar using one actuator
Built To Solve: REFLEX Light Actuator Control
Operate actuator movement through a power management control module.
Synchronize one or two actuators with the Single/Pair harness.
Pair the 3–8 Light harness with an actuator linking harness for multiple actuators.
Tuck away the extra pair-harness lead on a 10-inch light bar with one actuator.
Best For: Riders Wiring REFLEX Light Actuators
Builders using an sPOD or Switch Pros power management system
Light-bar setups using one actuator
Single or pair lighting setups using up to two actuators
Multi-light setups using three to eight actuators and a linking harness
Specifications
Single/Pair capacity: One to two actuators
3–8 Light capacity: Three to eight actuators with an actuator linking harness
3–8 Light connection: Single lead, 3-pin
Manufacturer part numbers: 646304 (3+ Multi Light), 646305 (Single/Pair)
Fitment
Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
Does the 3–8 Light harness control multiple actuators by itself?
It must be paired with an actuator linking harness to power multiple actuators at the same time.
Which harness should I choose for one or two actuators?
Choose the Single/Pair harness. It powers one to two actuators in sync.
How many actuators can the multi-light harness control?
The single harness can control three to eight actuators when paired with an actuator linking harness.
What happens to the extra lead on a single-actuator 10-inch light bar?
The extra lead can be tucked away.
How do I choose an actuator linking harness for a multi-light setup?
Choose a linking harness for the number of actuators in the setup. Linking harnesses are listed for three through eight actuators.
Why Baja Designs
Baja Designs offers REFLEX actuator harness configurations for single or pair lights and multi-light setups.
Choose a REFLEX Actuator Harness
Select the harness configuration for your actuator setup at Dunes 2 Dezert SXS.
