What is the output voltage range of the Osram 57351 Optotronic LED driver?

The Osram 57351 Optotronic LED driver has an output voltage range of 8-55VDC, making it suitable for various LED applications.

Can the Osram LED driver be dimmed, and if so, what is the dimming range?

Yes, the Osram LED driver is 0-10V dimmable with a dimming range of 1-100%, allowing for flexible lighting control.

What are the programmable features of the Osram Optotronic driver?

The Osram Optotronic driver includes programmable features such as output current adjustment, dimming levels, dim-to-off functionality, soft start, LED thermal protection, and constant lumen output.

Is the Osram 57351 LED driver suitable for outdoor use?

The Osram 57351 LED driver is rated for dry and damp environments, making it suitable for certain outdoor applications, but it should be protected from direct exposure to water.

What types of fixtures can the Osram LED driver be used with?

The Osram LED driver is ideal for use with downlights, in-grade fixtures, recessed troffers, and wall washing applications, providing versatile lighting solutions.

Osram 57351 Optotronic 40W 120/277V Ac 50/60Hz Constant Current Dimmable Compact Led Driver Oti 40W/120-277/1A4 Dim-1

Osram 57351 Optotronic 40W 120/277V Ac 50/60Hz Constant Current Dimmable Compact Led Driver Oti 40W/120-277/1A4 Dim-1

Name: Osram 57351 Optotronic 40W 120/277V Ac 50/60Hz Constant Current Dimmable Compact Led Driver Oti 40W/120-277/1A4 Dim-1
Brand: Product Brand
Price: 30.99 USD
Availability: InStock
Rating: 4.5 (10 reviews)

$30.99
Regular price ~~$44.27~~

Wishlist

Customer Love Badge

⭐ Loved by +2,002 customers

Vendor: Osram

Type: Building Supplies

Sku: WBLSDB08JVMDDH5

Available: Available

Shipping information

- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
- International orders will incur shipping fees, which are calculated at checkout. International delivery typically takes 8-12 business days.

Guarantee safe checkout

Osram 57351 Optotronic 40W 120/277V Ac 50/60Hz Constant Current Dimmable Compact Led Driver Oti 40W/120-277/1A4 Dim-1

$30.99

Description Safety & Compliance

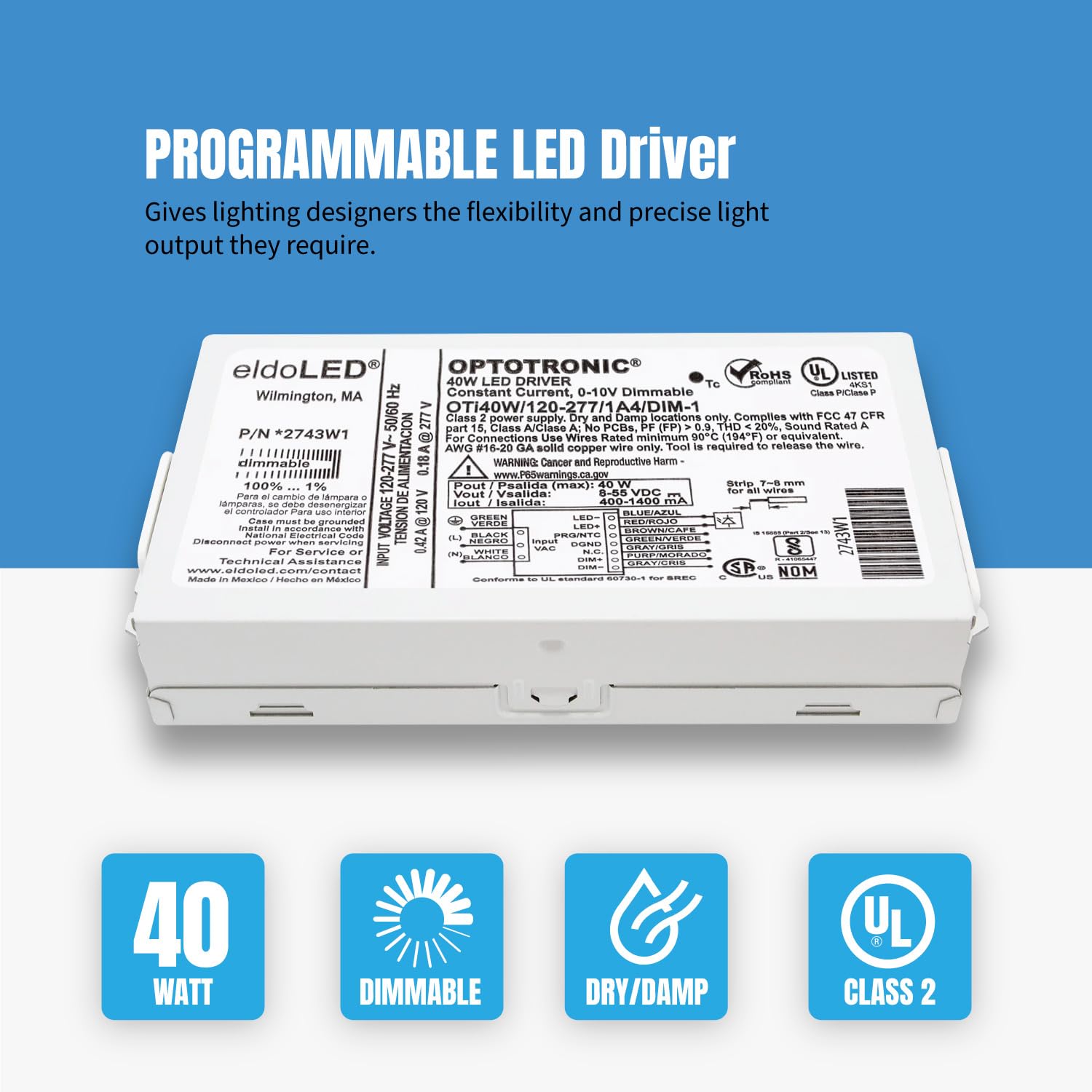

OPTOTRONIC Programmable Compact LED Drivers

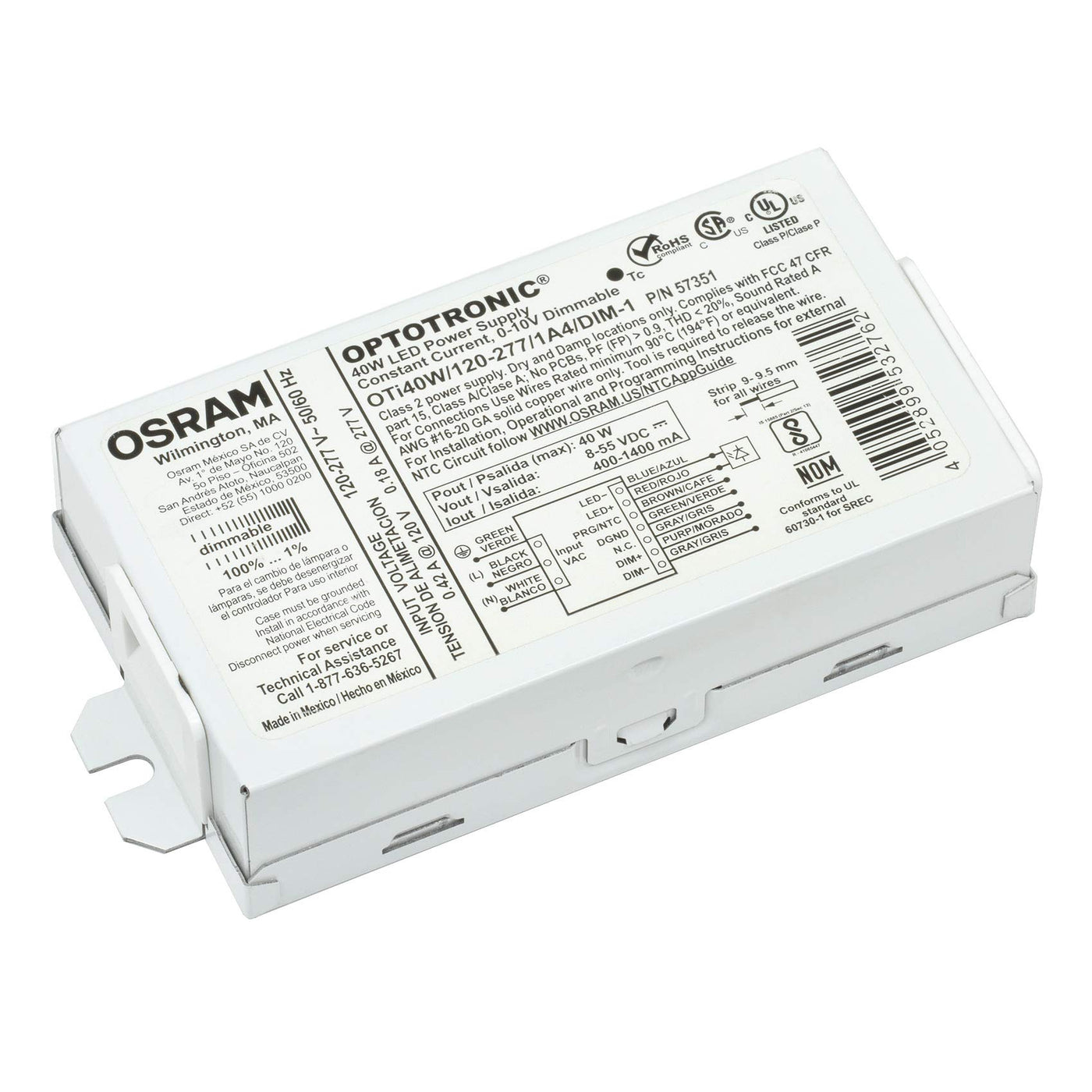

OSRAM 57351 OPTOTRONIC OTi40W/120-277/1A4 DIM-1 40W Constant Current, 0-10V Dimmable LED Driver

Product Features

Programmable Features:

Input Voltage: 120-277V (+/- 10%)
Frequency Range: 50-60 Hz (+/- 5%)
Max. Output Power (W): 40W
Dimming Control: 0-10V (Isolated)
Dimming Range: 1-100%
Output Voltage (VDC): 8-55VDC
Output Current (mA): 400-1400mA (1mA Step), Default 700mA

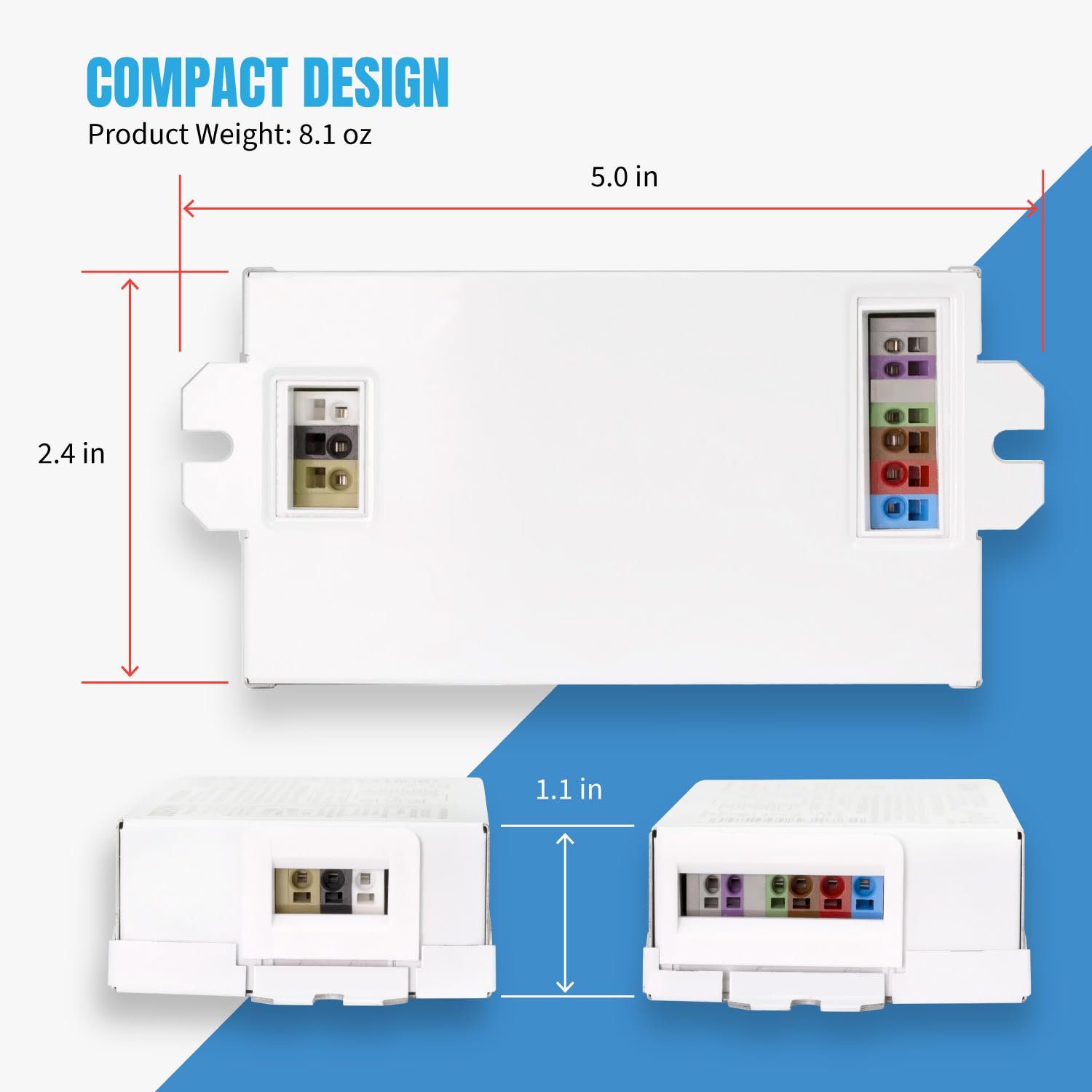

Product Dimensions (L x W x H): 5.0" x 2.4" x 1.2"
Product Weight: 7.8oz
Quantity: 1
UL Environmental Rating: Dry and Damp

Product Family Features

Universal input voltage - 120–277VAC 50/60Hz
UL Class 2 output for safe operation
Protection against line voltage on 0-10 V dimming wires
AUX output models available
Custom programmable with 1mA resolution to perfectly match LED load and maximize performance
Programming does not require powering up or connecting the power supply to AC line voltage
Wide output current and voltage range

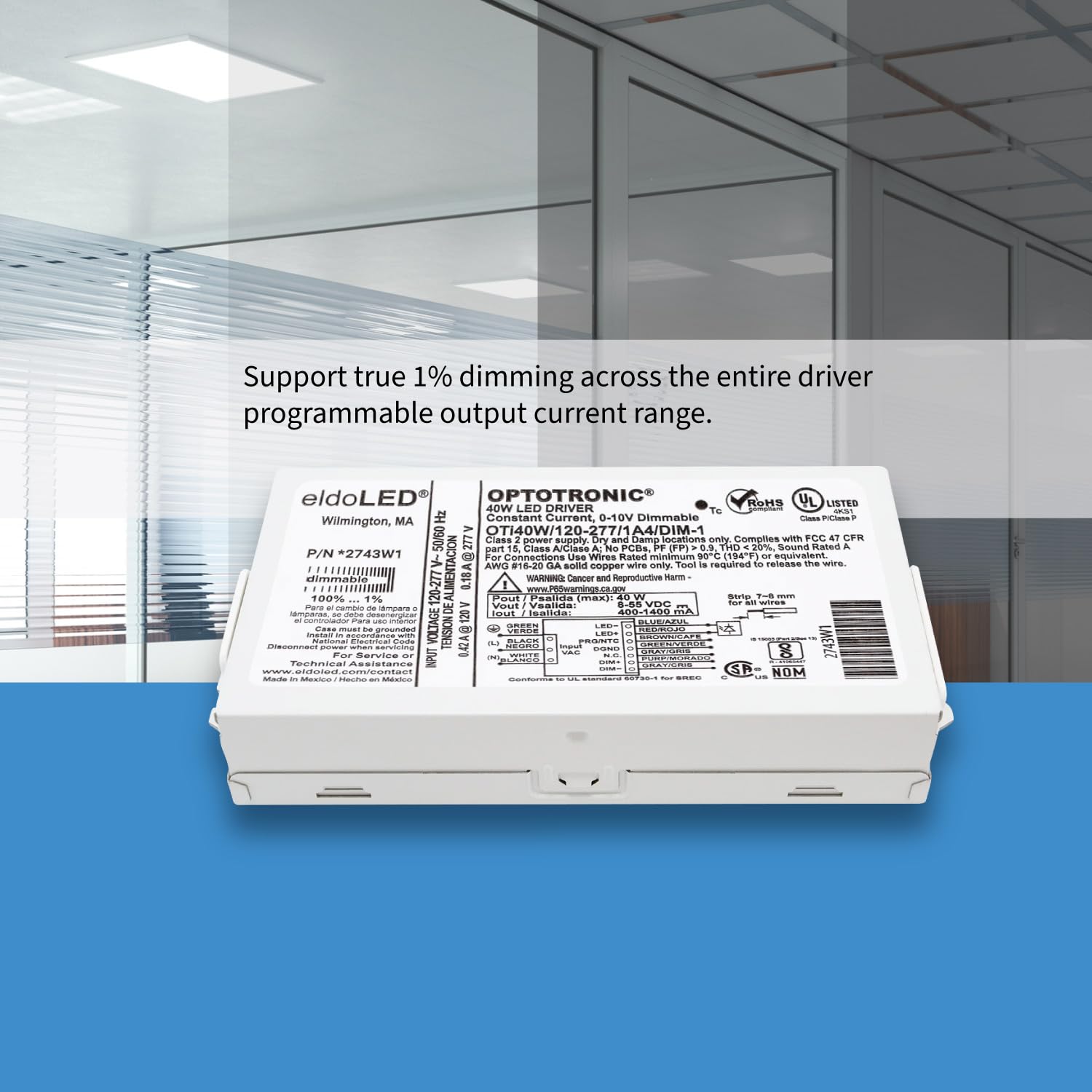

Available in dimming to 1% with 0–10 V dimmers
Integrated OEM programmable features include: constant lumen maintenance, end-of-life indication, LED thermal protection, Vaux (12V/20V/24V), soft start, and dim-to-off
Available with mounting feet (F-style) or PEM studs (J-style) to simplify installation
Conforms UL SREC for NTC based thermal protection

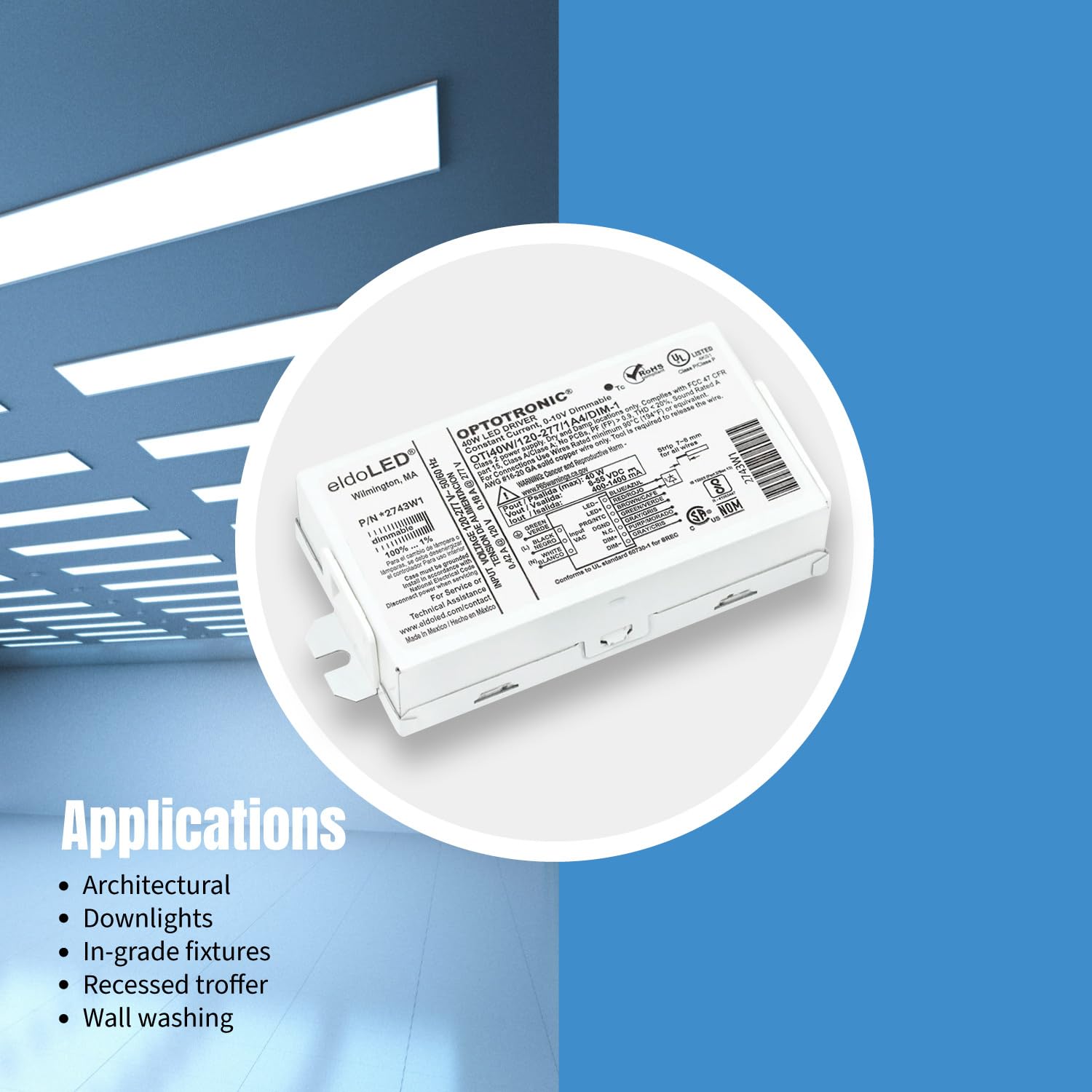

Areas of Application

Downlights, In-grade fixtures, Recessed troffer, Wall Washing

⚠️ WARNING (California Proposition 65):
This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, please visit www.P65Warnings.ca.gov.

Frequently Asked Questions

Q: What is the output voltage range of the Osram 57351 Optotronic LED driver? A: The Osram 57351 Optotronic LED driver has an output voltage range of 8-55VDC, making it suitable for various LED applications.
Q: Can the Osram LED driver be dimmed, and if so, what is the dimming range? A: Yes, the Osram LED driver is 0-10V dimmable with a dimming range of 1-100%, allowing for flexible lighting control.
Q: What are the programmable features of the Osram Optotronic driver? A: The Osram Optotronic driver includes programmable features such as output current adjustment, dimming levels, dim-to-off functionality, soft start, LED thermal protection, and constant lumen output.
Q: Is the Osram 57351 LED driver suitable for outdoor use? A: The Osram 57351 LED driver is rated for dry and damp environments, making it suitable for certain outdoor applications, but it should be protected from direct exposure to water.
Q: What types of fixtures can the Osram LED driver be used with? A: The Osram LED driver is ideal for use with downlights, in-grade fixtures, recessed troffers, and wall washing applications, providing versatile lighting solutions.
