DOMRAEM ESP32 WLED Controller 4-Output 16A Fuse Level Shifter Low Power for WS2811/12B/05/SK6812 Addressable RGB Pixel Lights
Free Standard Shipping Across USA
WELCOME5: Use code WELCOME5 for 5% off on your first order
Couldn't load pickup availability
Vendor: Lightsdaddy
Type:
Sku: 1005011685995807-ESP32 4CH 16A Fuse-2 year warranty
Availability: In Stock
Sold by LightsDaddy, an authorized reseller.
Returns accepted within 30 days | support@lightsdaddy.com
Shipping Information
- Free Standard Shipping — United States only
- Processing Time: 3–5 business days
- Estimated Delivery: 6–10 business days after dispatch
- Securely packed to protect your lighting fixtures during transit
- Tracking number sent via email once dispatched
- Orders over $250 require signature upon delivery. Taxes calculated at checkout.
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · Item must be unused & in original packaging
All returns require a Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Safety & Compliance
⚠️
California Proposition 65 Warning
Some products sold on this website may expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
www.P65Warnings.ca.gov
⚡
Electrical Safety Warning
All electrical products must be installed by a qualified electrician in accordance with local wiring regulations. Incorrect installation may result in fire, electric shock, or injury.
Always disconnect power at the circuit breaker before installation.
💡
Bulb & Usage Advisory
Do not exceed the maximum wattage specified on the fixture label. Keep away from flammable materials. Allow adequate ventilation around the fixture.
Keep out of reach of children. Not suitable for wet locations unless rated IP65 or higher.
Guarantee safe checkout
DOMRAEM ESP32 WLED Controller 4-Output 16A Fuse Level Shifter Low Power for WS2811/12B/05/SK6812 Addressable RGB Pixel Lights - ESP32 4CH 16A Fuse / 2 year warranty
$34.90
SPECIFICATIONS
1-ch lc Qty: 800 ICs (WS2811/WS2812B/WS2815/SK6812, etc.)
4-ch lc Qty: 3200 ICs (WS2811/WS2812B/WS2815/SK6812, etc.)
Applicable Lights: LED pixel strip
Brand Name: DOMRAEM
Certification: ce,EMC,FCC,LVD,ROHS
Choice: yes
Connection Mode: WIFI
Controled Method: APP Control /Remote Control
Features: WLED APP Control
High-concerned chemical: none
Is Smart Device: Yes
Item Type: RGB controler
Material: ABS plastic
Max. Load Power: 384W
Model Number: DOM-Z-103
Origin: Mainland China
Oscillation frequency: 50-60HZ
Power Source: DC
Remote Distance: 30M
Voltage: 5-24V
Warranty: 2years
Wattage: 384W

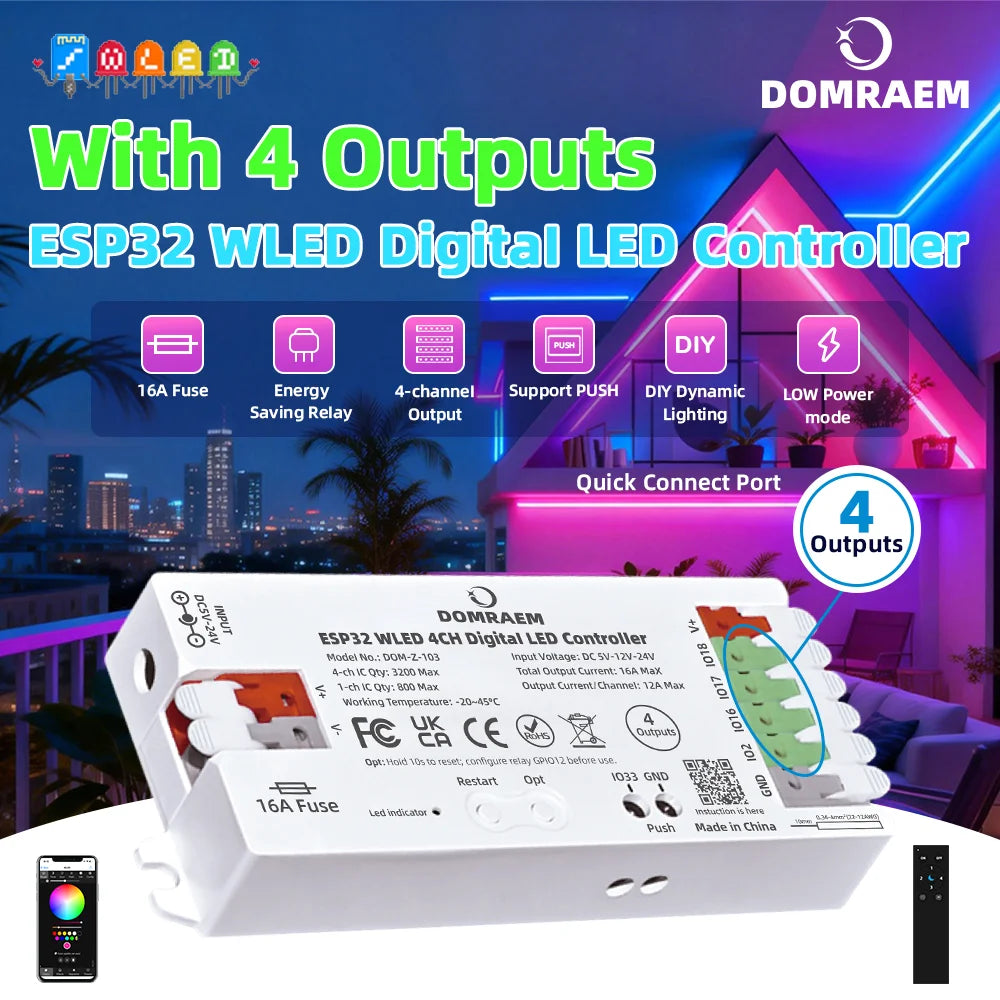

DOMRAEM ESP32 4-Channel Addressable Lighting Controller| WLED Smart Driver Hub
🎯 Professional Silent Edition | Dedicated Lighting Effects Engine
A driver core designed for lighting artistry and engineering applications, equipped with the open-source WLED lighting system and preloaded with over 120 dynamic lighting effects. The four-channel independent output architecture supports simultaneous control of multiple LED strips, enabling zoned control and effect combinations. The no-microphone design focuses purely on precise lighting programming and scene building.
🚀 Core Features

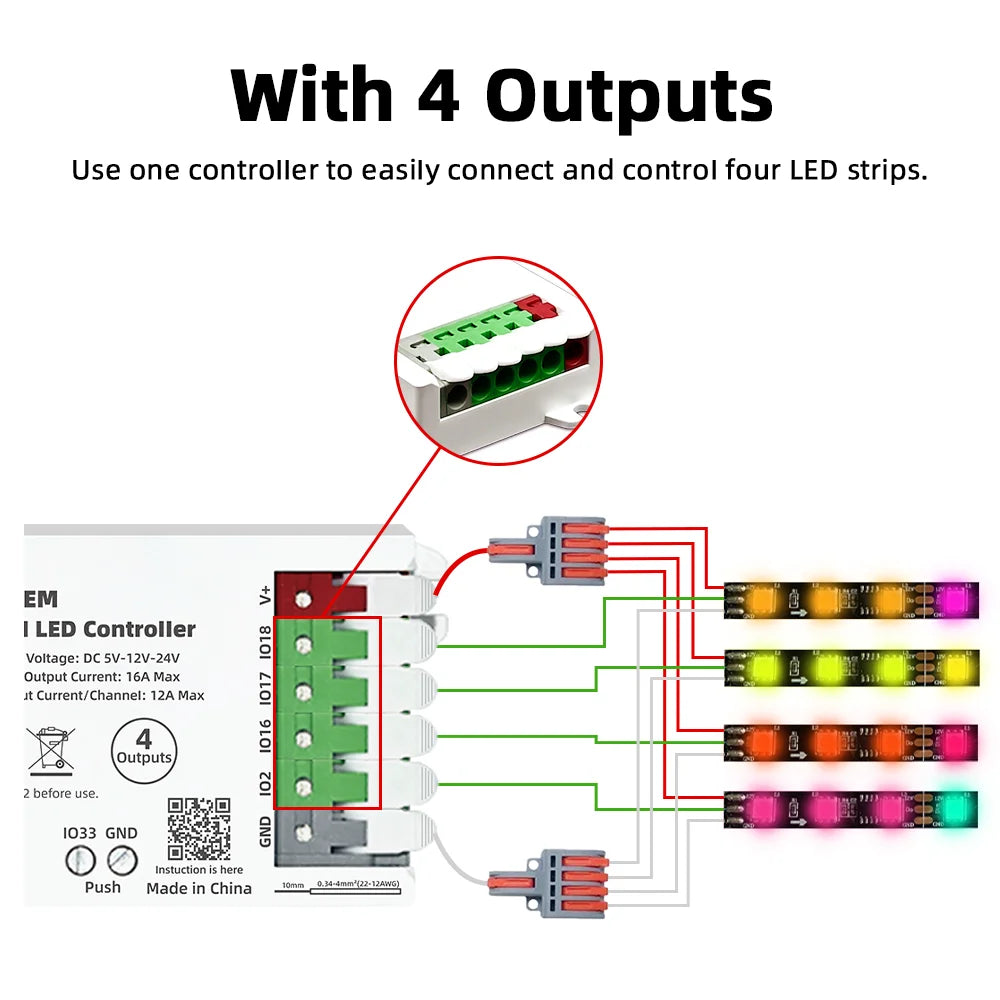

▸ Four-channel independent signal output｜16A max load per channel
▸ Dual wide-voltage input (5-24V DC)｜Built-in 16A overload protection fuse
▸ Native WLED firmware｜Supports real-time control via web and mobile app
▸ Signal level shifter module｜Ensures stable signal transmission over long distances
▸ Engineering-grade circuit design｜Hybrid solid-state and large electrolytic capacitor filtering architecture
💡 Intelligent Lighting Control
Supports 16 million true colors with smooth gradient transitions
Virtual segmenting function: A single LED strip can be divided into multiple logical segments, each running different effects
Timeline scheduling: Supports automatic lighting mode and brightness switching based on time schedules
Multiple preset storage: Save and quickly recall multiple sets of custom lighting scenes
🔧 Compatible Chip List
WS2811 / WS2812B / WS2815 | SK6812 / SK6812RGBW | APA102
SM16703 | TM1814 | and other mainstream addressable RGB protocol chips

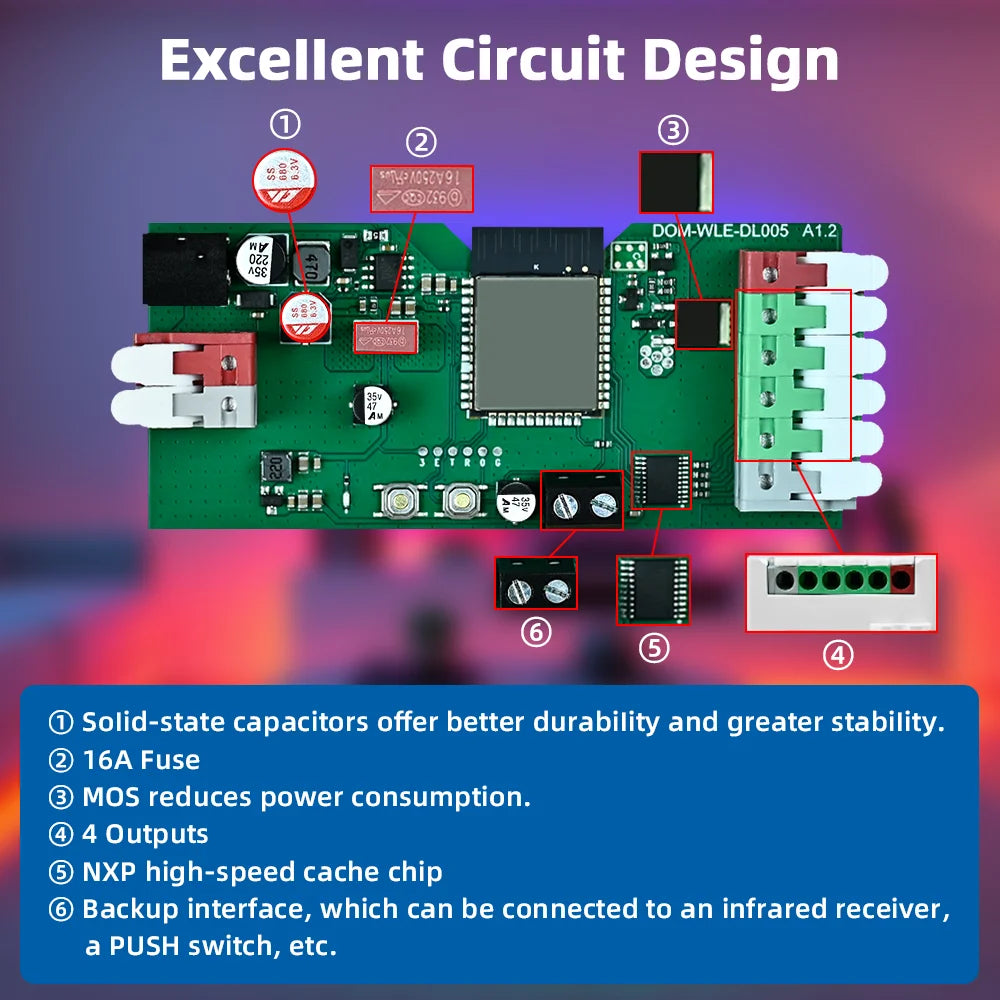

📦 Engineering-Grade Reliability Configuration
High-performance core: Utilizes ESP32 main control module paired with an NXP high-speed cache chip, ensuring real-time command processing and smooth signal flow.
Stable power supply design: Combines solid-state capacitors and large electrolytic capacitors to filter noise, providing clean and stable operating voltage for LED strips and ensuring long-term reliable operation.
-

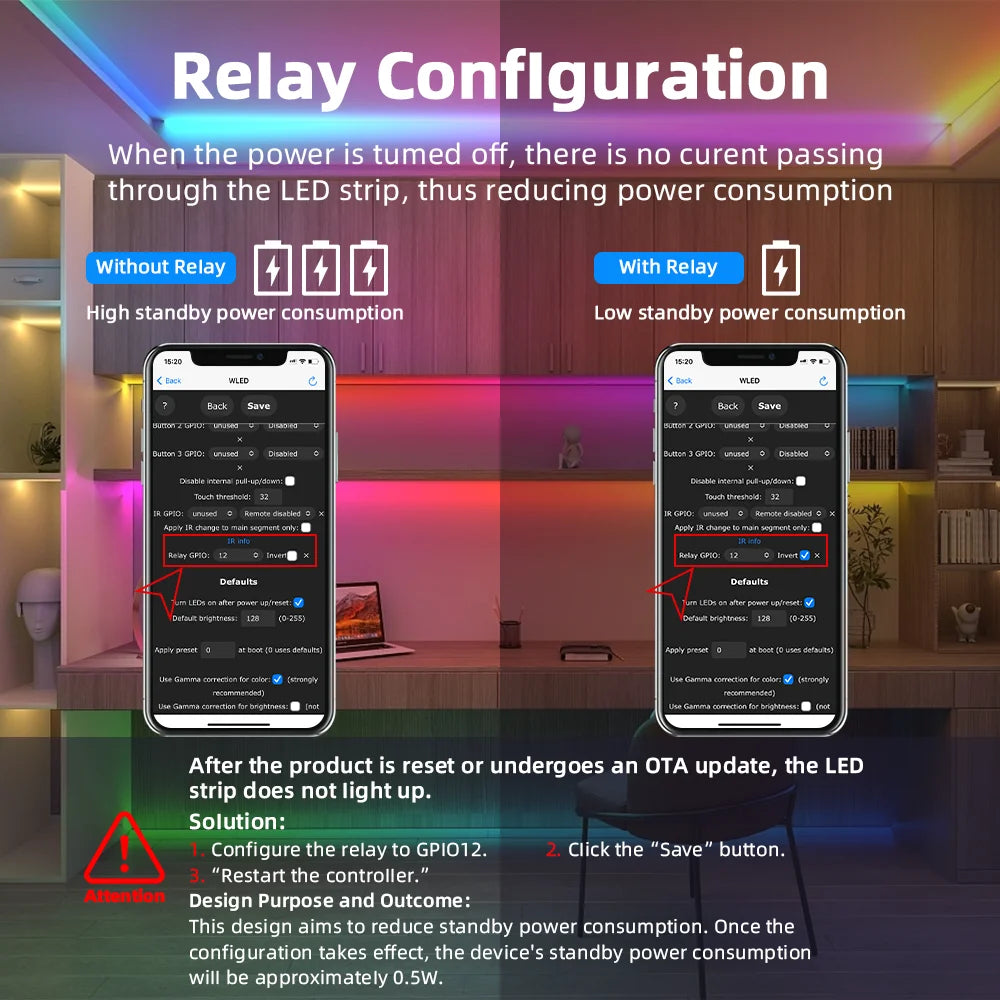

Standby power consumption ≤ 0.5W.

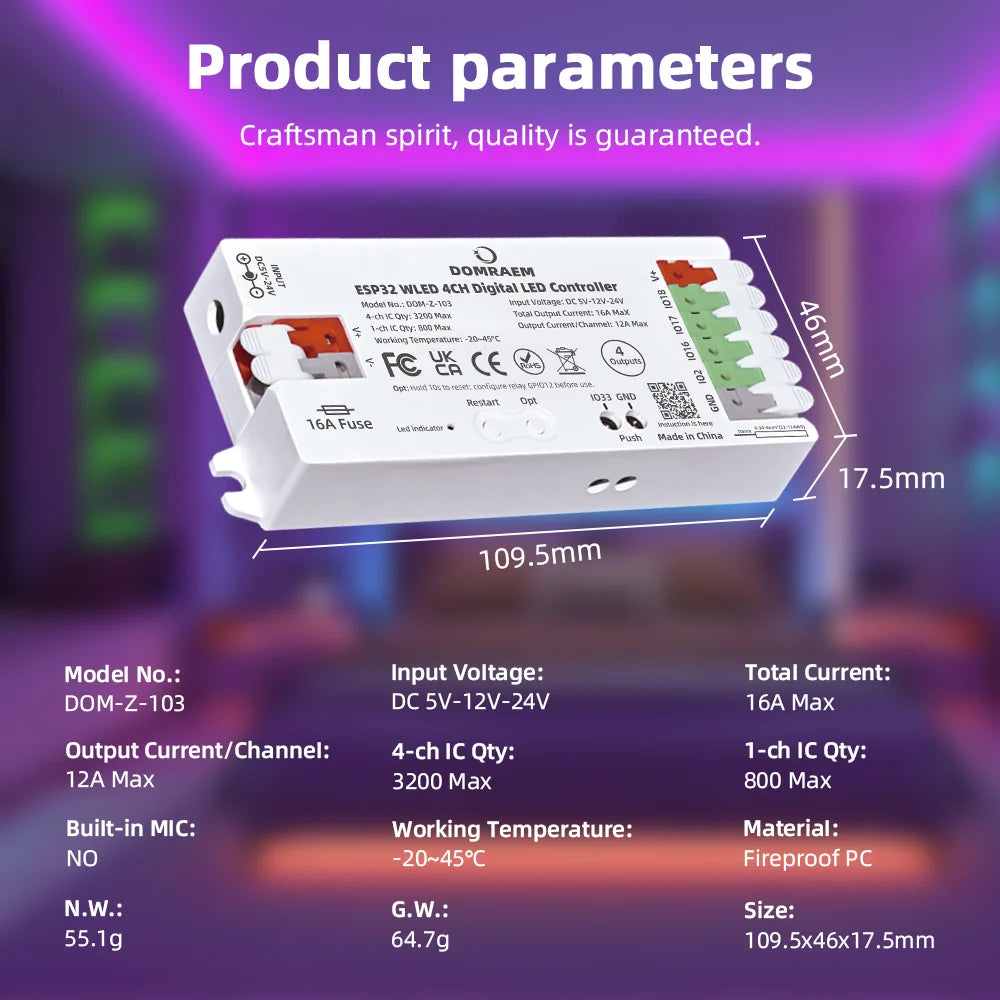

📋 Product Specifications:

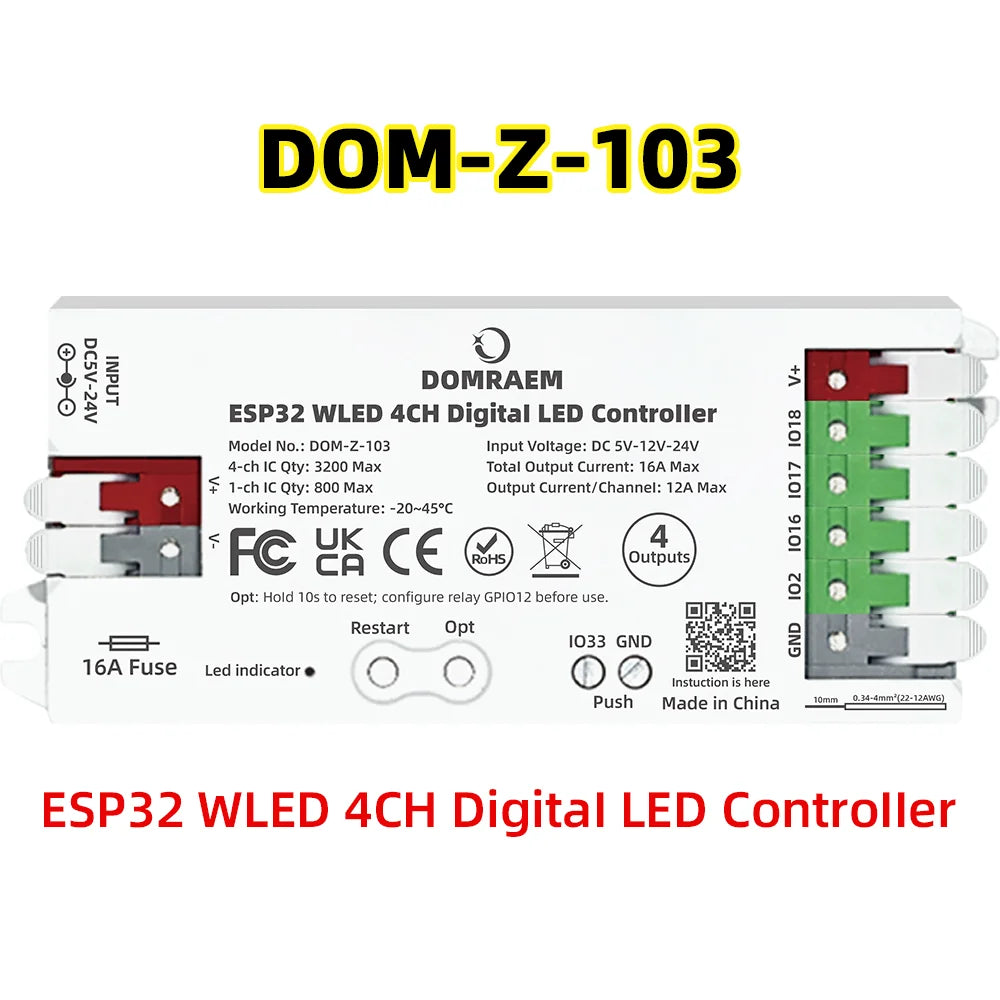

Model: DOM-Z-103
DC Input Voltage: 5V-12V-24V
Max Output Current: 16A (Total)
Pixel Support: 800 per channel, 3200 total (4 channels)
Compatible Strips: WS2811, WS2812/2B/3/5, SK6812, APA102, etc.
Dimensions: 109.5 × 46 × 17.5mm
⚠️ WARNING (California Proposition 65):
This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information, please visit www.P65Warnings.ca.gov.
