Some products sold on this website may expose you to chemicals known to the State of
California to cause cancer, birth defects, or other reproductive harm.
All electrical products must be installed by a qualified electrician in accordance
with local wiring regulations. Incorrect installation may result in fire, electric
shock, or injury.
Always disconnect power at the circuit breaker before installation.
💡
Bulb & Usage Advisory
Do not exceed the maximum wattage specified on the fixture label.
Keep away from flammable materials. Allow adequate ventilation around the fixture.
Keep out of reach of children. Not suitable for wet locations unless rated IP65 or higher.

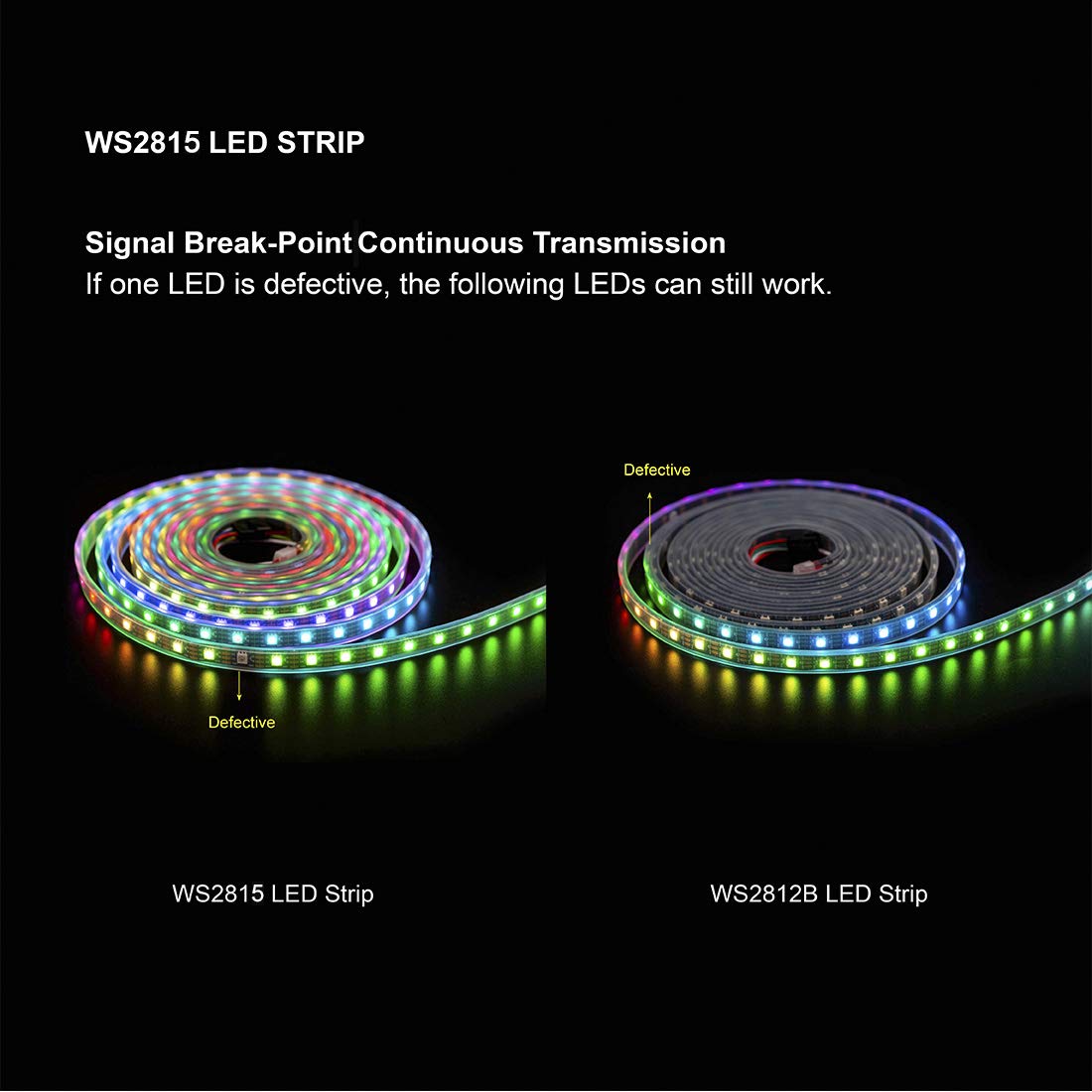

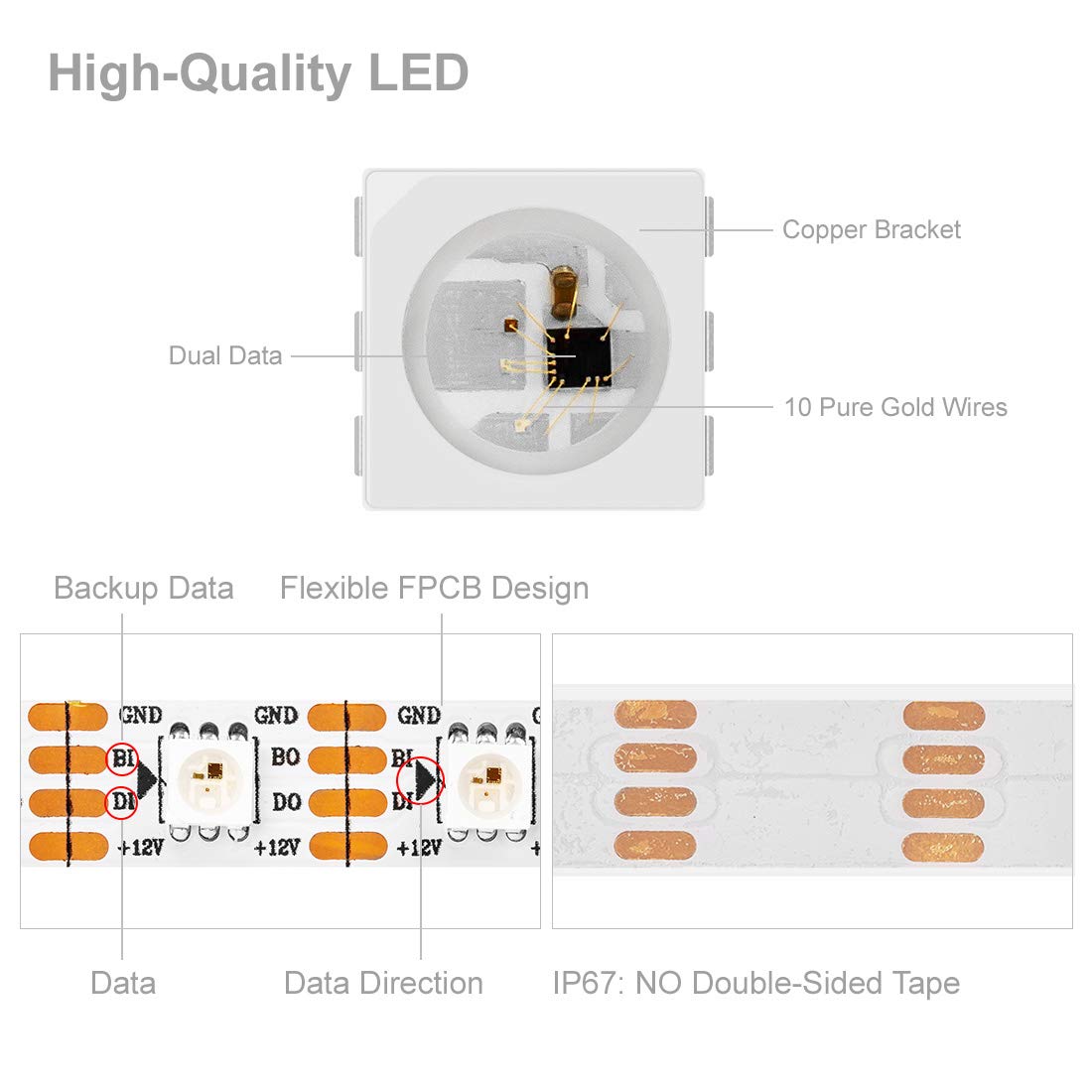

Parameter ?Light Source: 5050 Rgb Led ?Led Qty: 144Pcs Per Meter ?Wave Length (Nm): R,650Nm ; G,520Nm ; B,460Nm ?Color Order : G R B(Not Rgb ?The Gray Level: 256 ?Color: Full Color (24-Bit ) ?View Angle: 120 ?Voltage: Dc 12V ?Power: 18W/M Total 90W ?Waterproof:Ip67Waterproof ?Recommend Power Supply: 12V10A ?Fpcb Board Color: White ?Dimension: 1000*12*4Mm ?Life Span: =50000Hrs Pin Function ?12V: Power Voltage, Connect To +12V ?Do: Control Data Signal Output ?Di: Control Data Signal Input ?Bo: Backup Control Data Signal Output ?Bi: Backup Control Data Signal Input ?Gnd: Data &Power Grounding Technical Features ? The Control Circuit And Rgb Chip Are Integrated In A 5050 Components, To Form An External Control Pixel. ? The Control Circuit And The Led Share The Only Power Source. ? Using The Built-In Signal Reshaping Circuit To Achieve The Signal Waveform Shaping, And No Distortion Of Waveform Of Signal Takes Place. ? Built-In Power-On Reset And Brown-Out Reset Circuits. ? Port Scanning Frequency Reaches To 2Khz/S. ? Serial Cascade Interface. Data Receiving And Decoding Depend On Just One Signal Line. ? Dual-Signal Wires Version, Signal Break-Point Continuous Transmission. ? If The Transmission Distance Between Any Two Points Is Less Than 3M, Another Circuit Is Not Needed. ? When The Refresh Rate Is 30Fps, Cascade Numbers Are Far More Than 1024 Points. ? Data Transmitting Speed Is Up To 800Kbps. Package ?1X 3.2Ft 144 Pixels Ws2815 Led Strip?1X 4Pin Male Connector?Power Supply And Controller Are Not Included
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Q: What is the length and number of LEDs in this strip light?A: The strip light is sixteen point four feet long and features three hundred individual LEDs.
Q: What type of LED is used in this product?A: This product uses five thousand fifty RGB LEDs for vibrant color display.
Q: Is the strip light waterproof?A: Yes, it has an IP67 waterproof rating, making it suitable for outdoor use.
Q: How do I install this LED strip light?A: To install, simply connect the power supply to the designated input and adhere the strip to a clean, flat surface.
Q: Can I cut the LED strip to fit my space?A: Yes, you can cut the strip at designated points without damaging the remaining LEDs.
Q: What is the recommended power supply for this LED strip?A: A twelve volt, ten amp power supply is recommended for optimal performance.
Q: What is the lifespan of the LED strip light?A: The LED strip light has an estimated lifespan of fifty thousand hours.
Q: How do I clean the LED strip light?A: To clean, gently wipe the surface with a damp cloth; avoid using harsh chemicals.
Q: Is this product safe for indoor use?A: Yes, the LED strip light is safe for indoor use, provided it is kept away from moisture.
Q: How do I troubleshoot if the LED strip is not working?A: First, check the power connections; if the issue persists, inspect the strip for any visible damage.
Q: Can I use multiple strips together?A: Yes, you can connect multiple strips in series, but ensure the total current does not exceed the power supply's capacity.
Q: What is the color order of the LEDs?A: The color order of the LEDs is green, red, blue, which differs from the standard RGB configuration.
Q: Does this product come with a controller?A: No, the power supply and controller are not included with this LED strip light.
Q: What is the power consumption of this LED strip?A: The power consumption is eighteen watts per meter, totaling ninety watts for the entire strip.
Q: How do I ensure the LED strip stays in good condition?A: Keep it dry, avoid bending excessively, and store it away from direct sunlight when not in use.
