Some products sold on this website may expose you to chemicals known to the State of
California to cause cancer, birth defects, or other reproductive harm.
All electrical products must be installed by a qualified electrician in accordance
with local wiring regulations. Incorrect installation may result in fire, electric
shock, or injury.
Always disconnect power at the circuit breaker before installation.
💡
Bulb & Usage Advisory
Do not exceed the maximum wattage specified on the fixture label.
Keep away from flammable materials. Allow adequate ventilation around the fixture.
Keep out of reach of children. Not suitable for wet locations unless rated IP65 or higher.

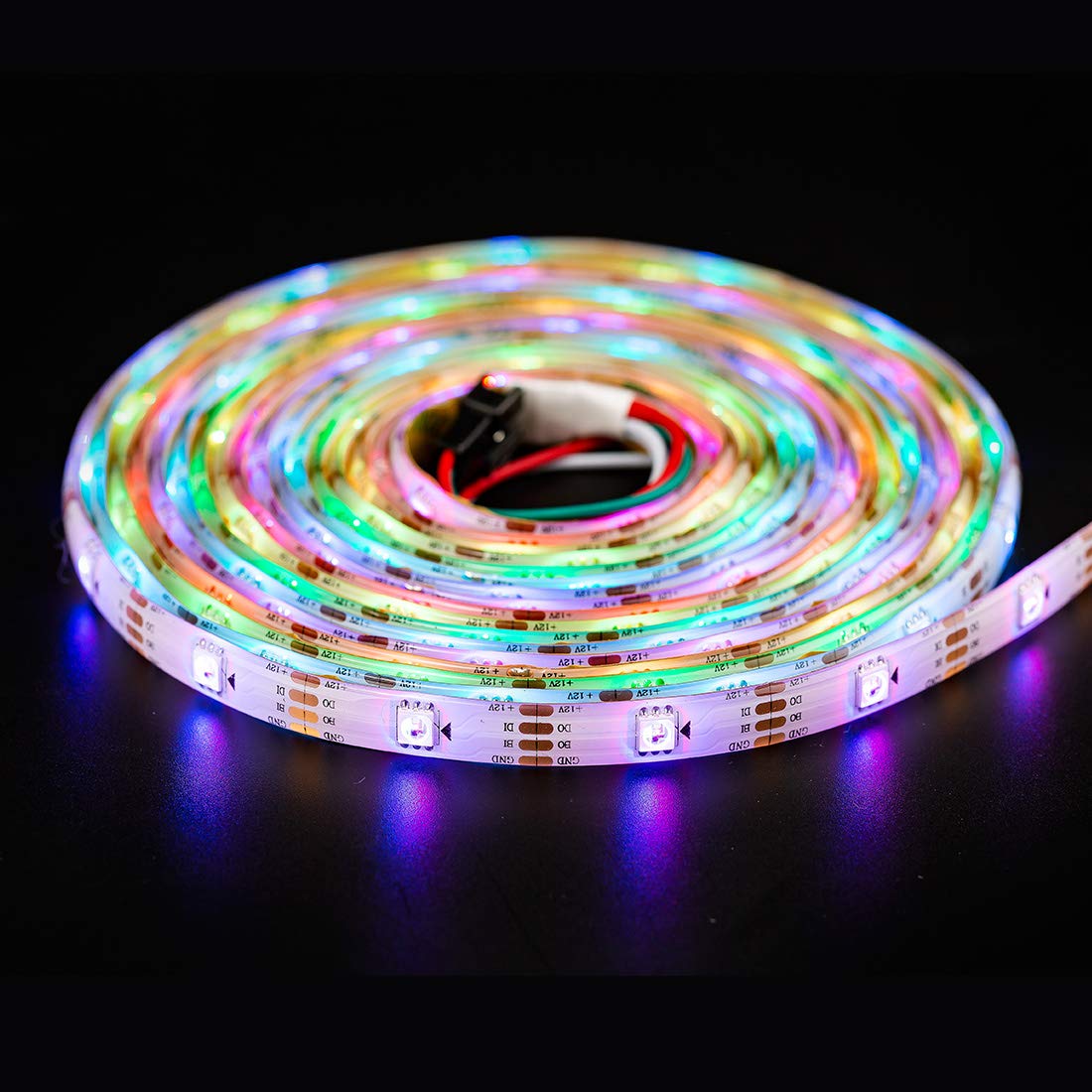

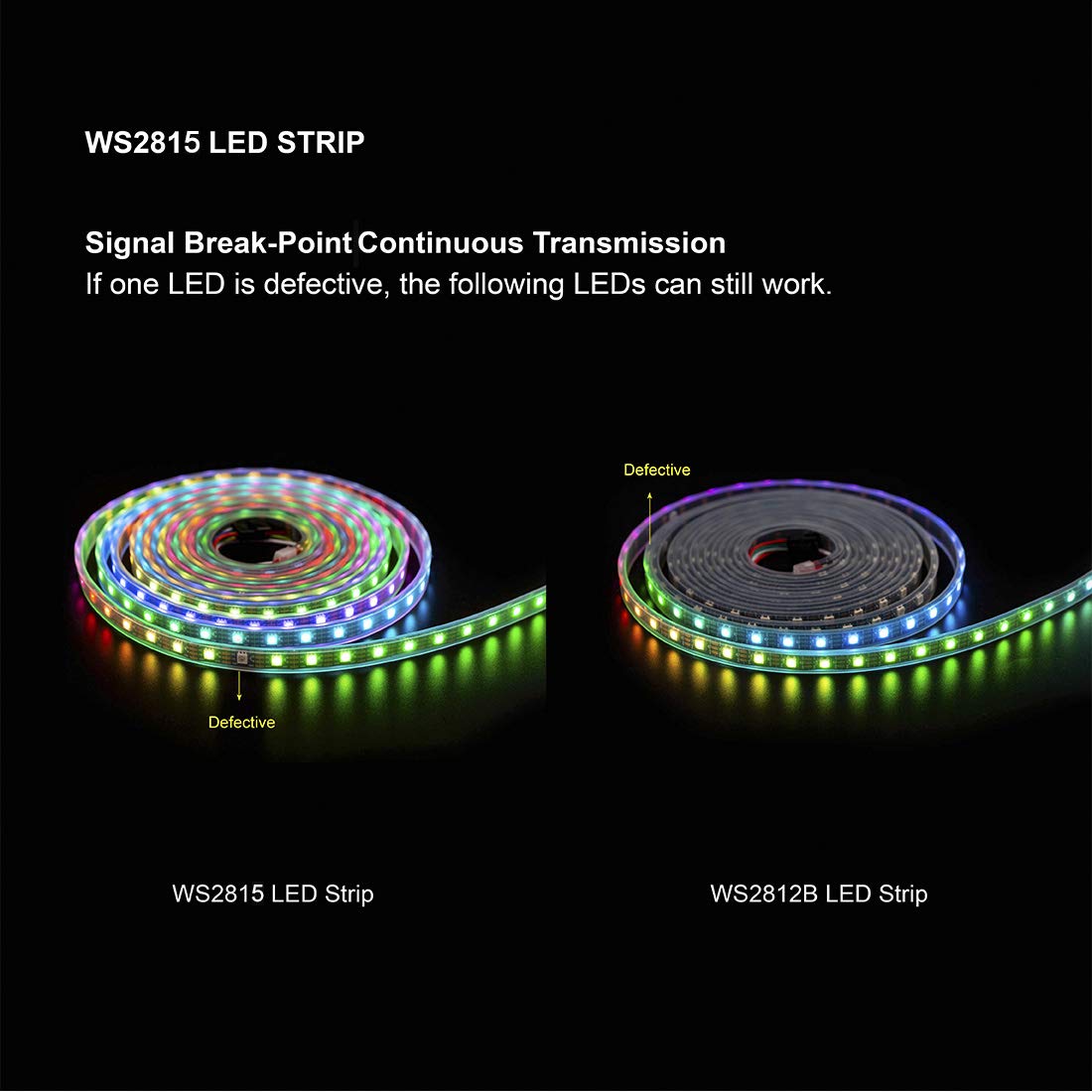

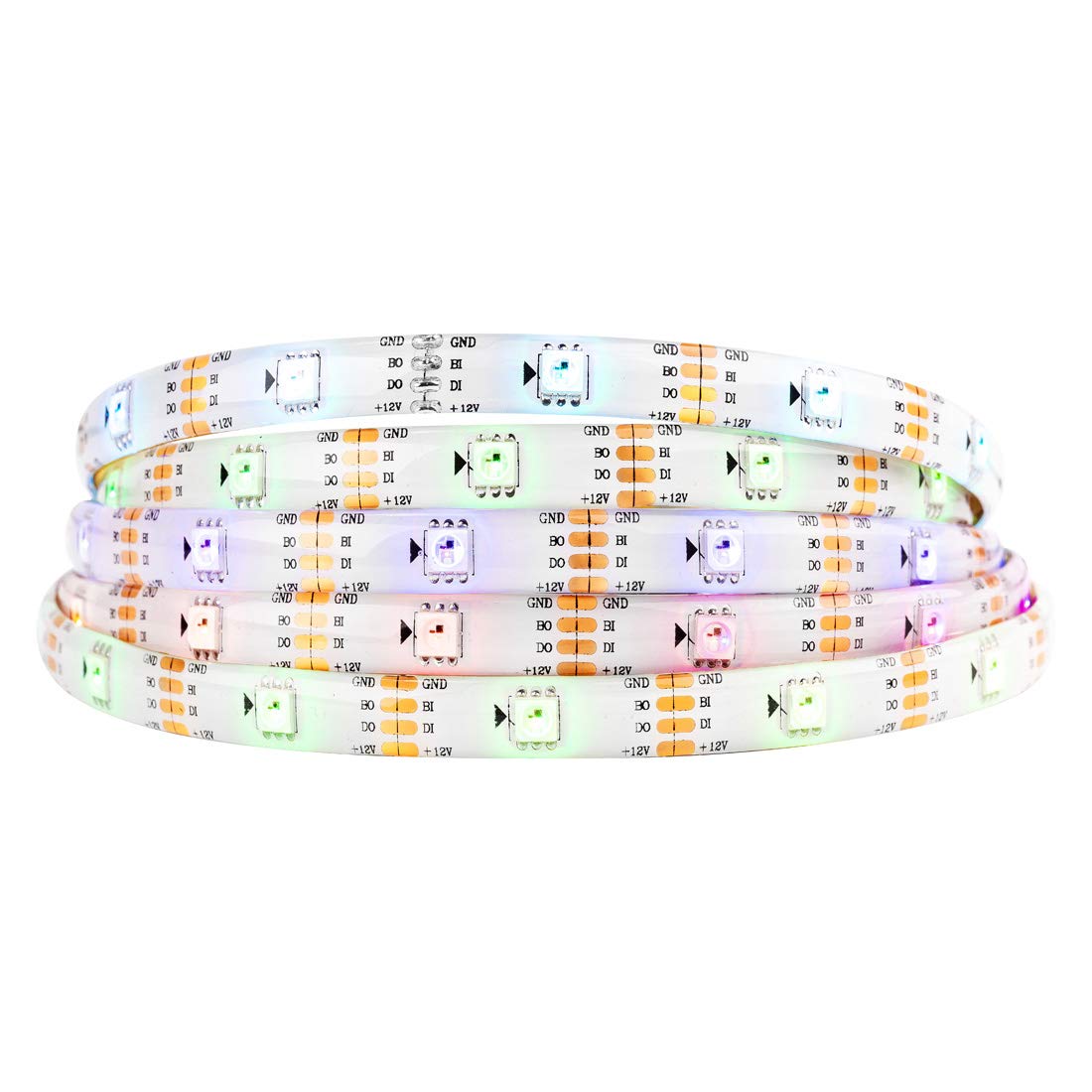

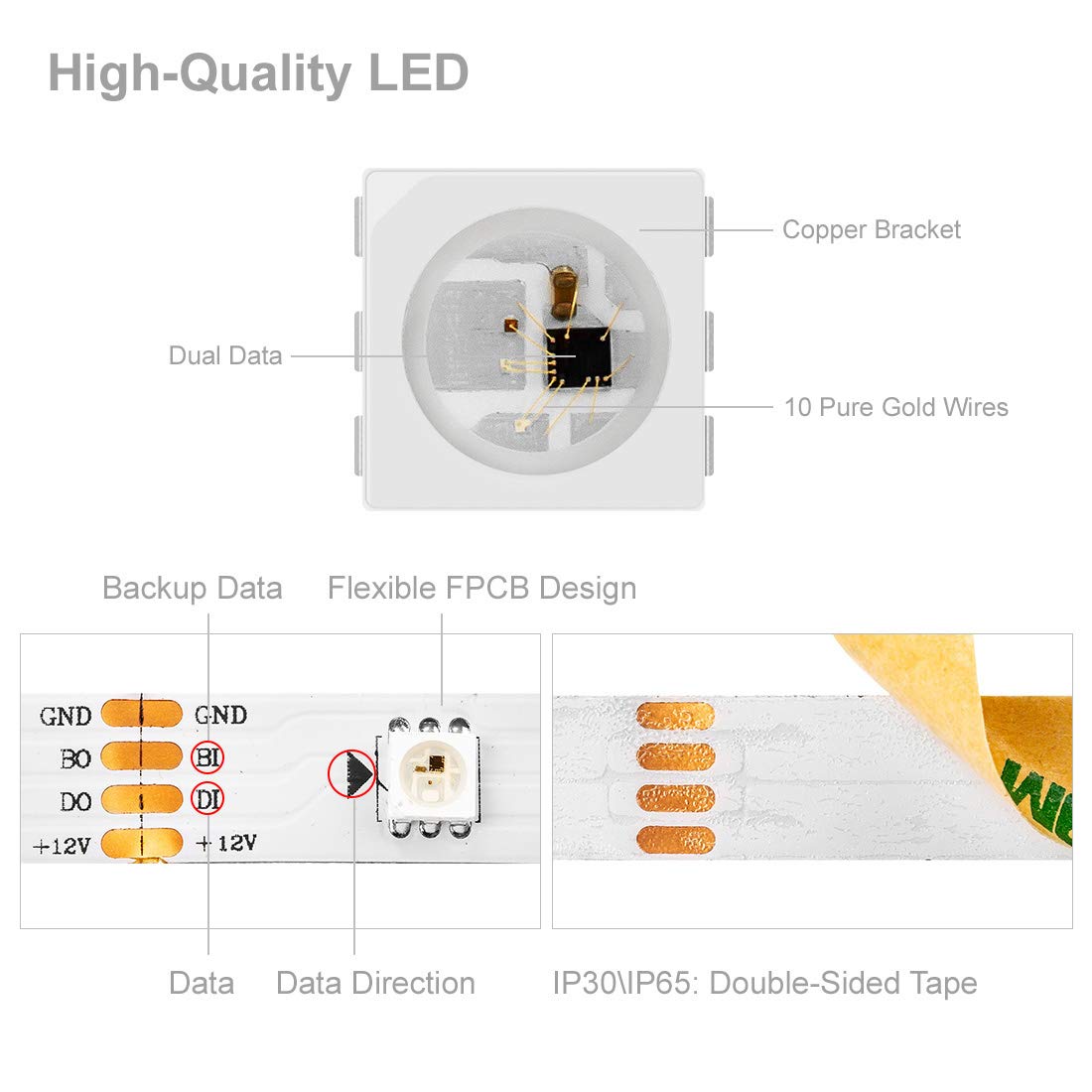

Parameter ?Light Source: 5050 Rgb Led ?Led Qty: 144Pcs Per Meter ?Wave Length (Nm): R,650Nm ; G,520Nm ; B,460Nm ?Color Order : G R B(Not Rgb ?The Gray Level: 256 ?Color: Full Color (24-Bit ) ?View Angle: 120 ?Voltage: Dc 12V ?Power: 9W/M Total 45W ?Waterproof:Ip65Waterproof ?Recommend Power Supply: 12V4A ?Fpcb Board Color: White ?Dimension: 1000*12*4Mm ?Life Span: =50000Hrs Pin Function ?12V: Power Voltage, Connect To +12V ?Do: Control Data Signal Output ?Di: Control Data Signal Input ?Bo: Backup Control Data Signal Output ?Bi: Backup Control Data Signal Input ?Gnd: Data &Power Grounding Technical Features ? The Control Circuit And Rgb Chip Are Integrated In A 5050 Components, To Form An External Control Pixel. ? The Control Circuit And The Led Share The Only Power Source. ? Using The Built-In Signal Reshaping Circuit To Achieve The Signal Waveform Shaping, And No Distortion Of Waveform Of Signal Takes Place. ? Built-In Power-On Reset And Brown-Out Reset Circuits. ? Port Scanning Frequency Reaches To 2Khz/S. ? Serial Cascade Interface. Data Receiving And Decoding Depend On Just One Signal Line. ? Dual-Signal Wires Version, Signal Break-Point Continuous Transmission. ? If The Transmission Distance Between Any Two Points Is Less Than 3M, Another Circuit Is Not Needed. ? When The Refresh Rate Is 30Fps, Cascade Numbers Are Far More Than 1024 Points. ? Data Transmitting Speed Is Up To 800Kbps. Package ?1X 3.2Ft 144 Pixels Ws2815 Led Strip?1X 4Pin Male Connector?Power Supply And Controller Are Not Included
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Q: What is the length and number of LEDs in this strip light?A: The strip light is sixteen point four feet long and contains one hundred fifty LEDs.
Q: What material is the LED strip made of?A: The LED strip is made of metal and features a white printed circuit board.

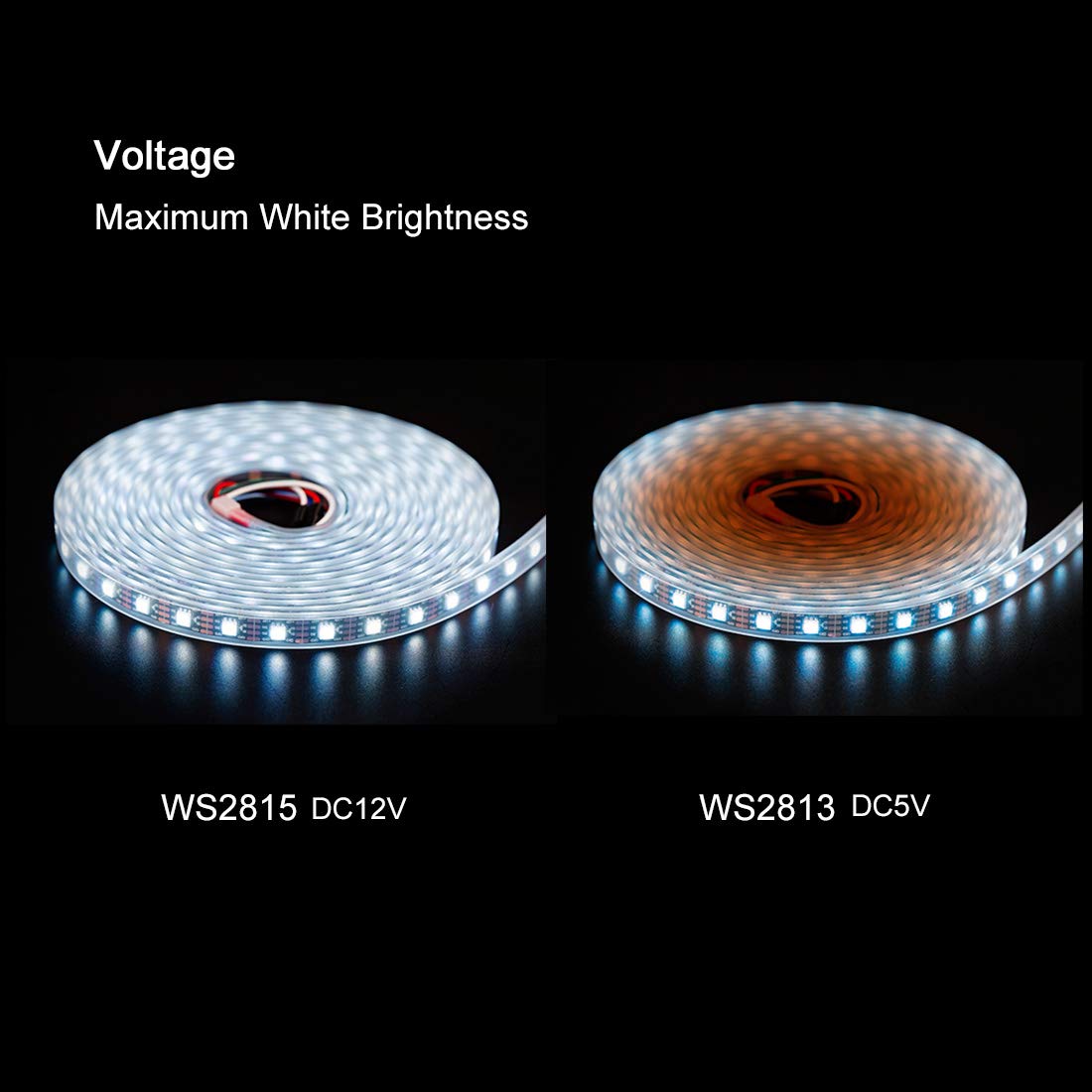

Q: What is the voltage requirement for the BTF-LIGHTING WS2815 strip?A: The strip requires a DC voltage of twelve volts to operate.
Q: How do I install the LED strip light?A: To install, use screws and clips provided; there is no adhesive tape on the back.
Q: Can I cut the LED strip to fit my needs?A: Yes, you can cut the strip, as each LED is individually addressable.
Q: What colors can this LED strip display?A: The strip can display full color with twenty-four-bit color depth, offering a wide range of colors.
Q: How should I clean the LED strip to maintain it?A: Use a damp cloth to gently wipe the strip; avoid using harsh chemicals that may damage it.
Q: Is the BTF-LIGHTING WS2815 strip waterproof?A: Yes, it has an IP65 rating, making it waterproof and suitable for outdoor use.
Q: What is the lifespan of the LED strip light?A: The lifespan of the strip is approximately fifty thousand hours under normal conditions.
Q: What kind of power supply do I need for this LED strip?A: A recommended power supply is twelve volts with at least four amps to ensure proper operation.
Q: Is this LED strip suitable for indoor and outdoor use?A: Yes, the IP65 waterproof rating makes it suitable for both indoor and outdoor applications.
Q: Can this LED strip work with any controller?A: It is compatible with various controllers including CSY08, SP108E, and K-1000C.
Q: What should I do if the LED strip arrives damaged?A: Contact customer support immediately to initiate a return or exchange process.
Q: How do I ensure the LED strip is safe during installation?A: Always disconnect the power supply before installation to avoid any electrical hazards.
Q: What types of lighting effects can I create with this LED strip?A: You can create a variety of effects including static, chasing, and custom animations using compatible software.
