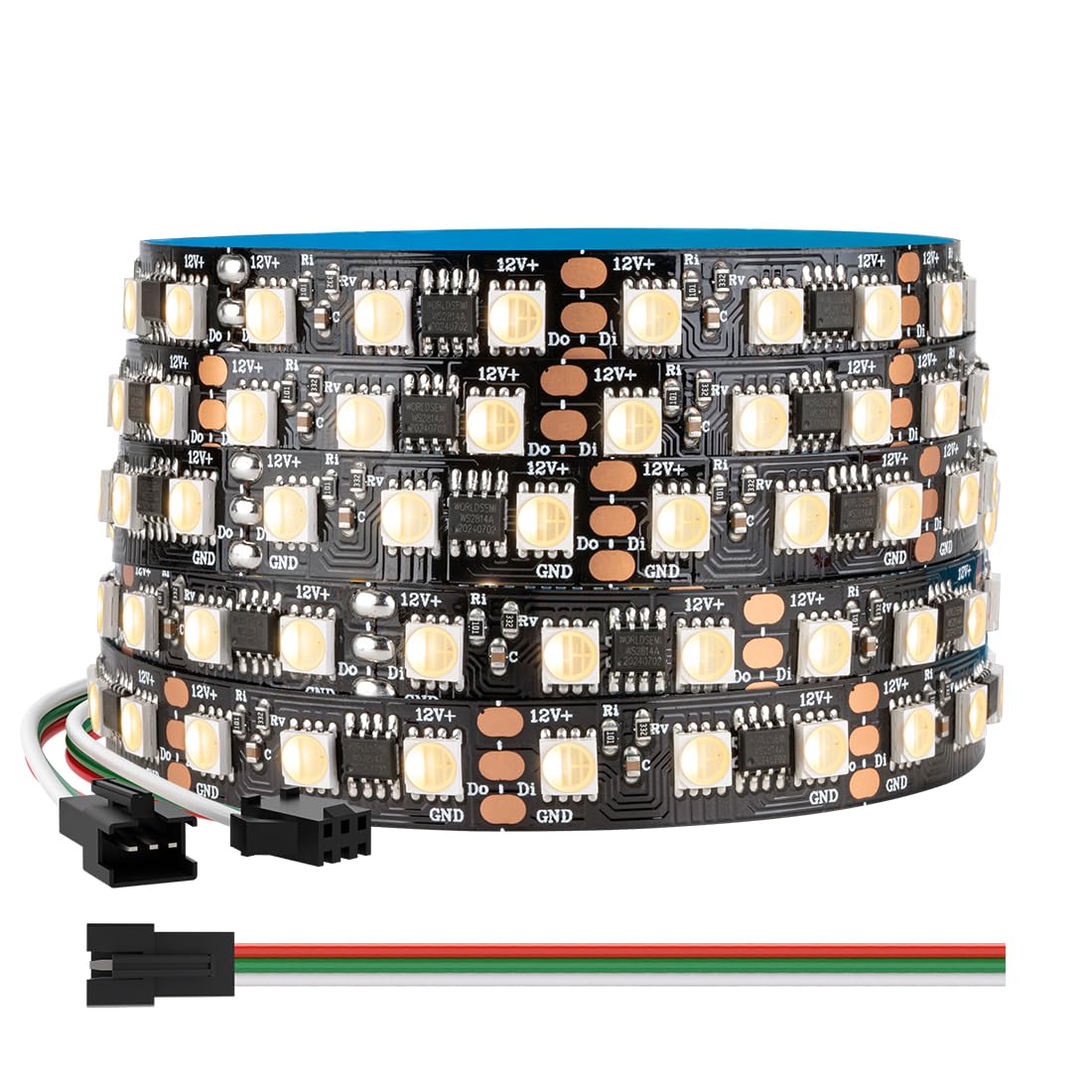

Btf-Lighting Ws2814 Ic Rgbw Rgb+Cool White(Similar Ws2812B) Addressable Dc12V 16.4Ft 84Led/M 28Pixel/M 4 Colors In 1 Dream Color
WELCOME5: Use code WELCOME5 for 5% off on your first order
Couldn't load pickup availability
⭐
Loved by +2,002 customers
Vendor: Btf-Lighting
Type: led-strip-lights
Sku: WBLSDB0D9LWLTH4
Available: Available
Shipping information
- No EU import duties.
- Ships within 1-2 business days.
- Ships in our fully recyclable and biodegradable signature boxes.
- International orders will incur shipping fees, which are calculated at checkout. International delivery typically takes 8-12 business days.
Guarantee safe checkout
Btf-Lighting Ws2814 Ic Rgbw Rgb+Cool White(Similar Ws2812B) Addressable Dc12V 16.4Ft 84Led/M 28Pixel/M 4 Colors In 1 Dream Color
$48.77
Customer Approved
Extensive Selection
Fast, Reliable Delivery
Top-Tier Quality
Frequently Asked Questions

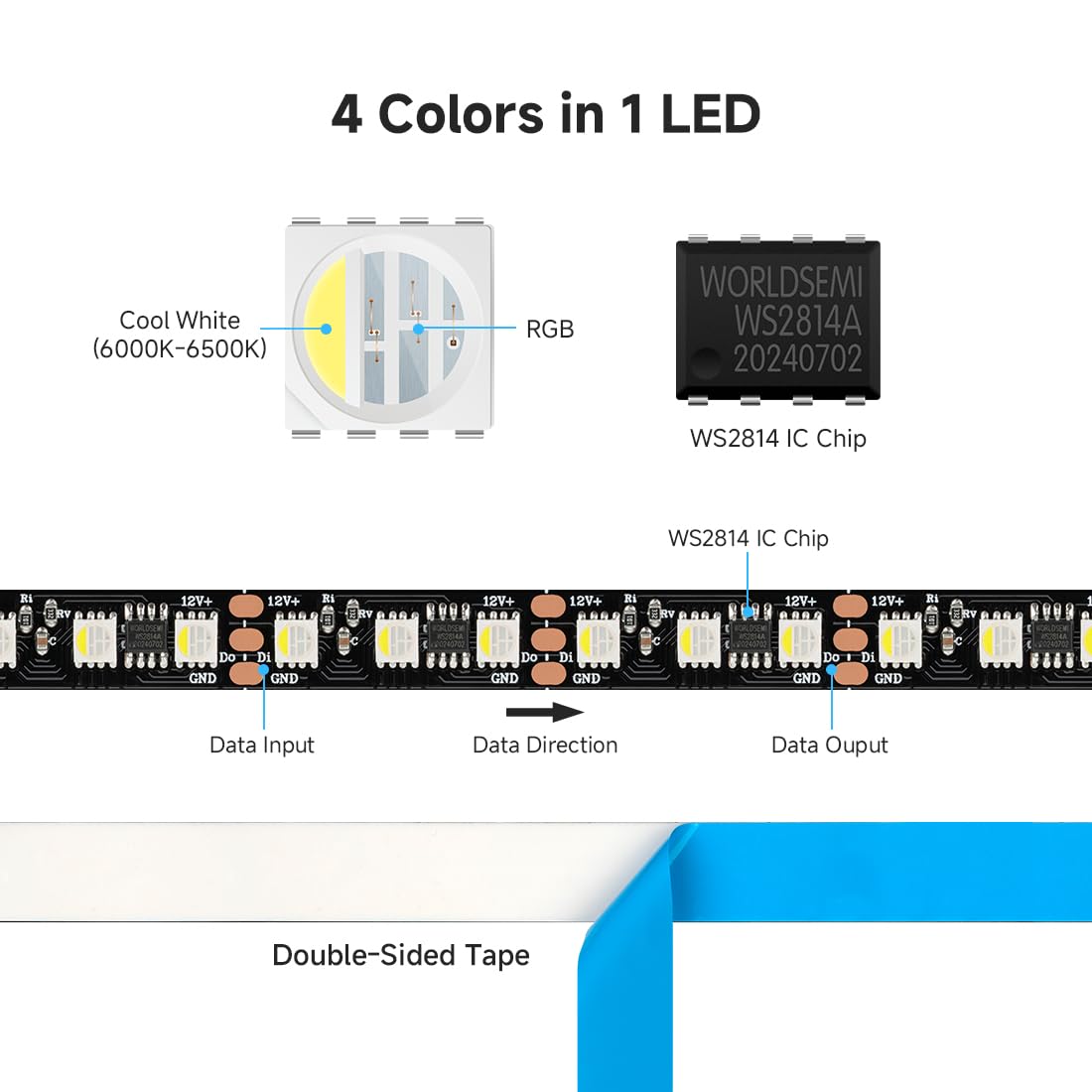

- Q: What is the difference between WS2814 and WS2812B LED strips? A: The WS2814 LED strip features a DC12V power supply and one WS2814 IC controlling three LEDs, which allows for RGB and pure white light options. In contrast, the WS2812B operates on DC5V with one IC controlling one LED, limiting its functionality. This makes WS2814 more suitable for longer runs and reduces voltage drop issues.

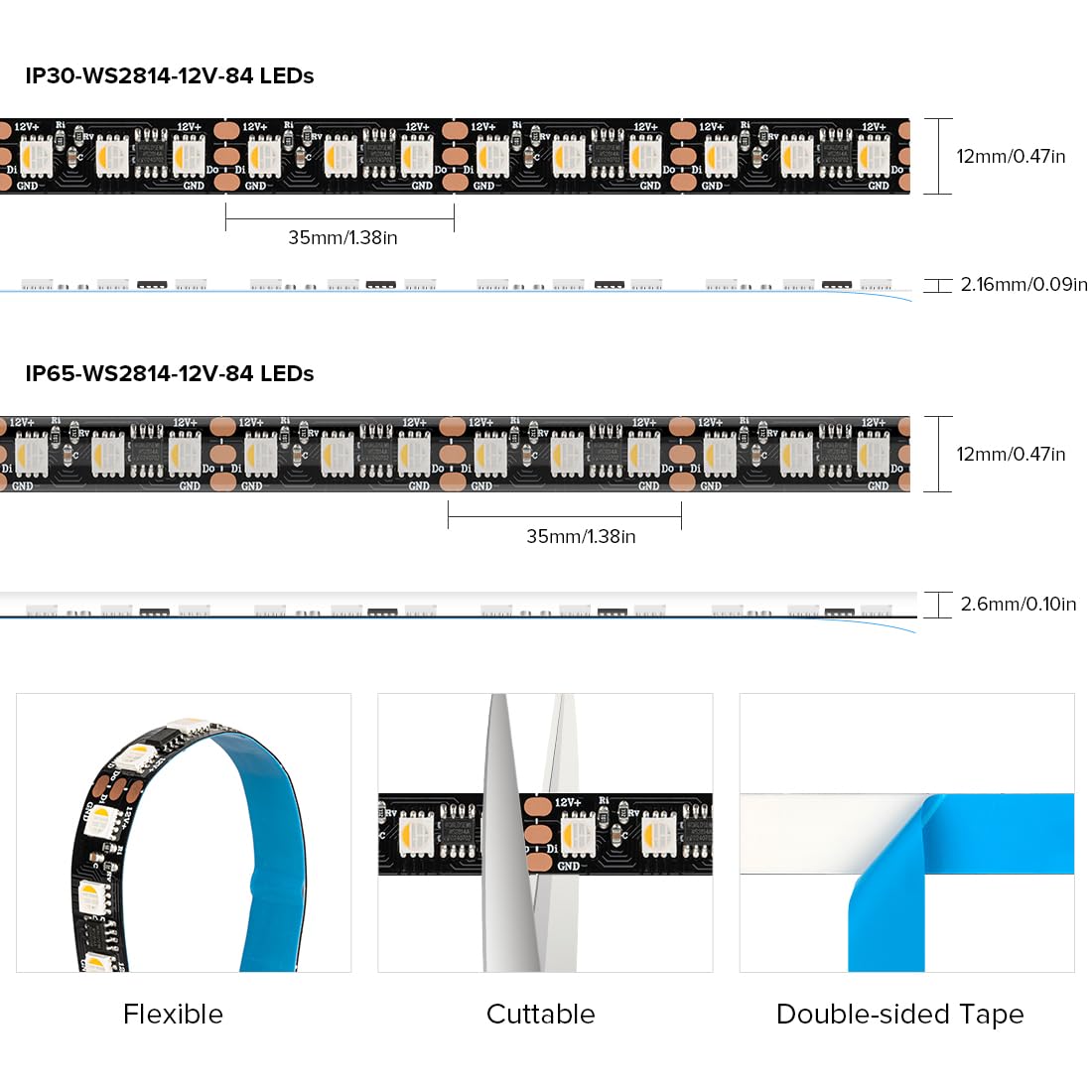

- Q: Can I cut the WS2814 LED strip to fit my project? A: Yes, the WS2814 LED strip can be cut every three LEDs without damaging the remaining portion of the strip. This feature allows for customization to fit various lengths and designs, making it versatile for different projects.
- Q: What kind of power supply do I need for the WS2814 LED strip? A: The recommended power supply for the WS2814 LED strip is DC12V, with options ranging from 6A to 40A depending on the total length and number of LEDs used. Ensure you do not use a DC5V or DC24V power supply as it may damage the strip.
- Q: Is the WS2814 LED strip waterproof and how can I install it? A: The WS2814 LED strip is available in both IP30 (non-waterproof) and IP67 (waterproof) versions. The IP30 variant comes with double-sided tape for easy installation on walls or other surfaces. For IP67, installation requires screws and clips as it does not come with adhesive.

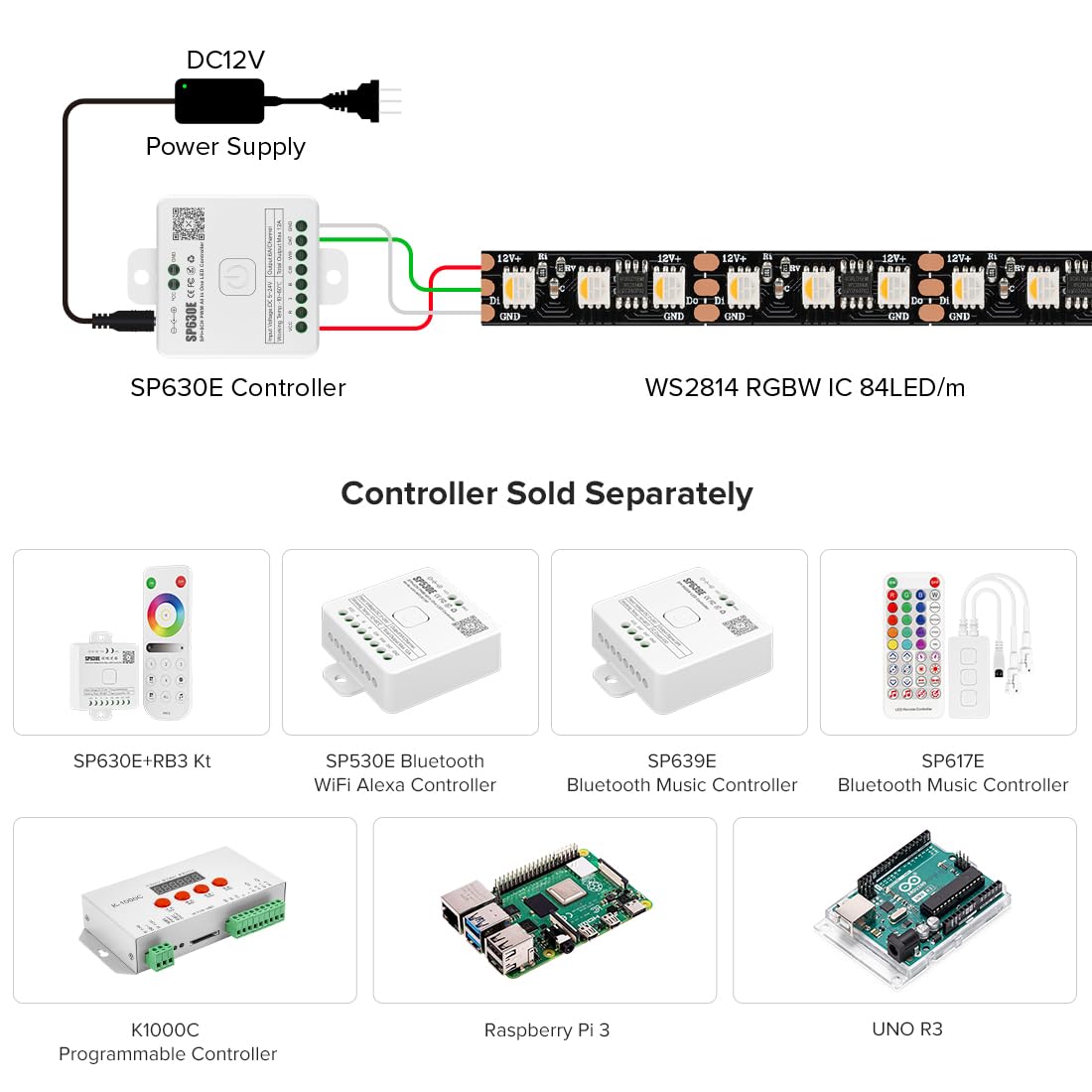

- Q: What controllers are compatible with the WS2814 LED strip? A: The WS2814 LED strip works well with Bluetooth controllers like SP617E, SP630E, and SP530E. These controllers allow you to program various lighting effects, including chasing RGB effects and static colors, enhancing your overall lighting experience.
