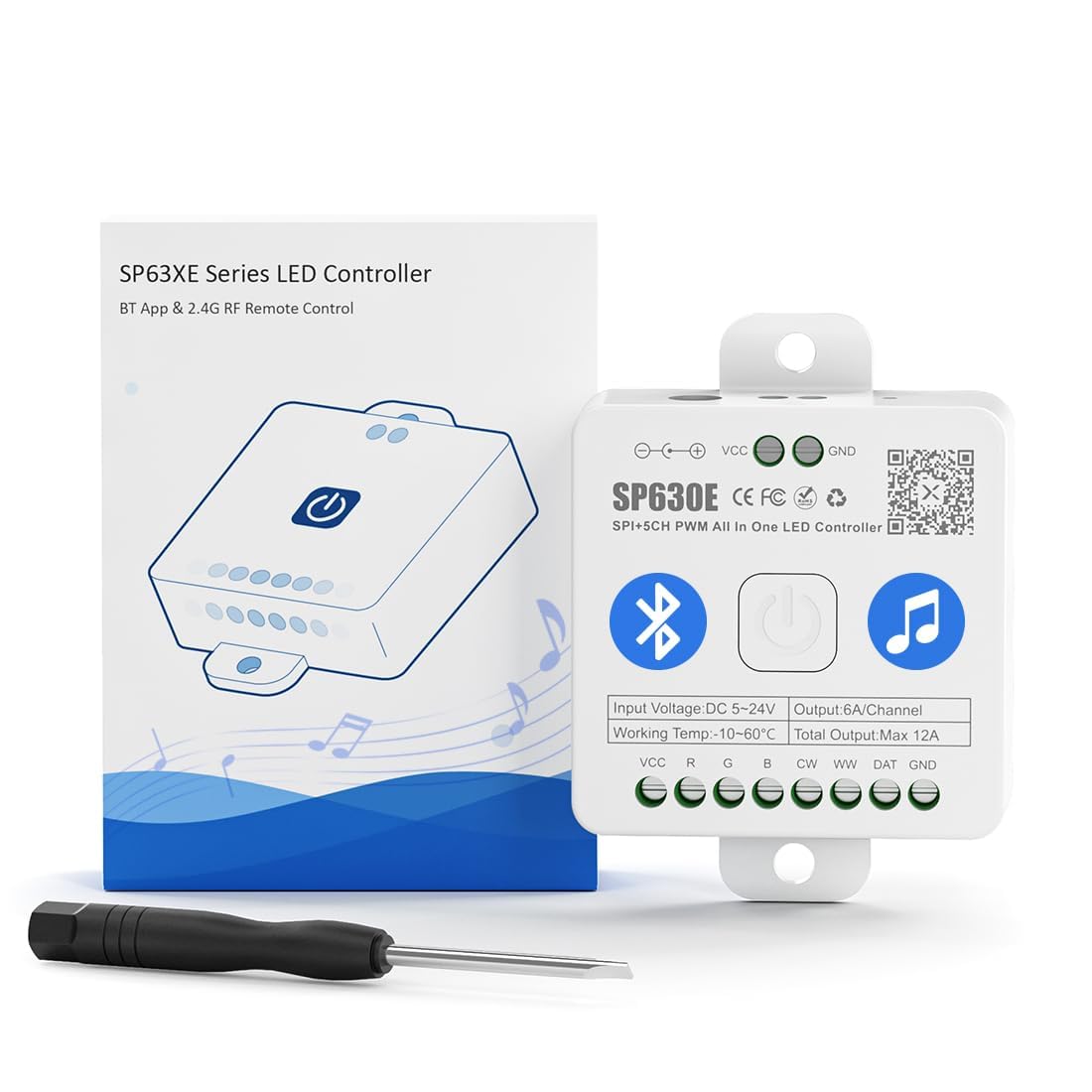

BTF-LIGHTING SP630E Bluetooth LED Controller, Supports RGB/RGBW/Monochrome, DC5V/DC12V/DC24V, White, Polyvinyl Chloride

Frequently Asked Questions

• Q: What types of LED strips are compatible with the BTF-LIGHTING SP630E Bluetooth LED Controller? A: The BTF-LIGHTING SP630E Bluetooth LED Controller is compatible with both PWM LED strips and addressable IC chip LED strips. This includes single color, CCT, RGB, RGBW, and RGBCCT strips such as WS2811, WS2812B, WS2813, WS2814, WS2815, and SK6812. It does not support Data+Clock LED strips like SK9822 or WS2801.
• Q: How does the color calibration feature work on the SP630E controller? A: The color calibration feature allows users to adjust the color output of the LED strip to match the color shown in the mobile app. This ensures consistency between the app settings and the actual LED colors.
• Q: Can I use the SP630E controller with different voltage LED strips? A: Yes, the SP630E controller can be used with DC5V, DC12V, or DC24V LED strips. Make sure to match the controller's power supply with the voltage rating of your LED strips for optimal performance.
• Q: What types of lighting effects can I create with the SP630E controller? A: The SP630E controller supports static, dynamic, and music effects. Users can create custom lighting effects by combining PWM LED strips with addressable IC chip strips and adjusting settings through the Banlan X app.
• Q: Is there a limit to the number of timers I can set on the SP630E? A: Yes, you can set up to five timers on the SP630E controller. The controller also features a memory function to retain timer settings in case of power loss.
• Q: What is the maximum current output of the SP630E controller? A: The SP630E controller can output a maximum of six amps per channel, with a total maximum output of twelve amps. This allows for powering multiple LED strips simultaneously, depending on their requirements.
• Q: How do I control the SP630E Bluetooth LED Controller? A: The SP630E can be controlled via the Banlan X app, which provides three operating interfaces for different effects: static, dynamic, and music. Ensure that the parameters of all connected SP630E units are consistent to use the app's grouping function.
• Q: What materials are used in the construction of the SP630E controller? A: The SP630E Bluetooth LED Controller is made from polyvinyl chloride, which is a durable material suitable for electronic components and provides good insulation.
• Q: Does the SP630E controller support DIY lighting effects? A: Yes, users can create their own custom lighting effects by combining PWM LED strips and addressable LED strips, allowing for a wide range of creative lighting setups.
• Q: What power jack size is used for the SP630E controller? A: The SP630E controller uses a five point five millimeter by two point one millimeter DC power jack. It's important to use the correct power supply to ensure compatibility and safe operation.
