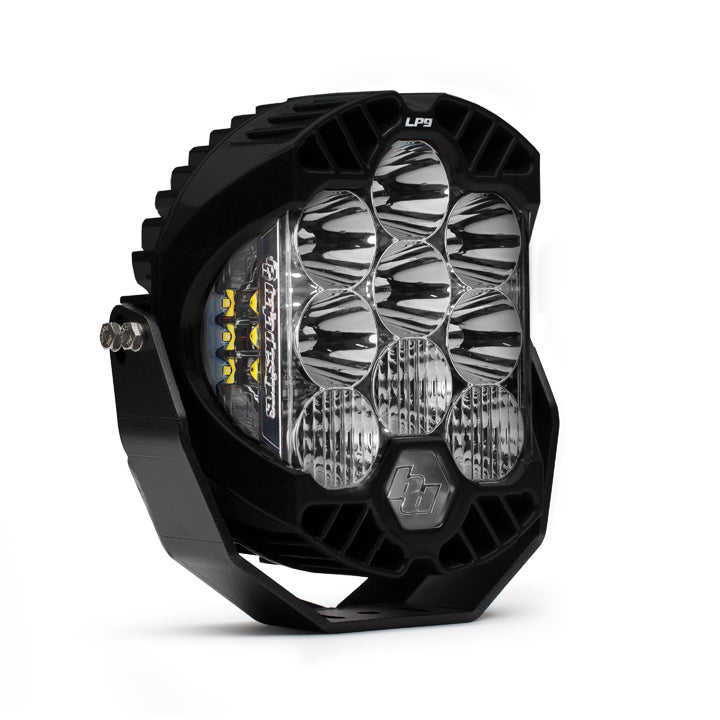

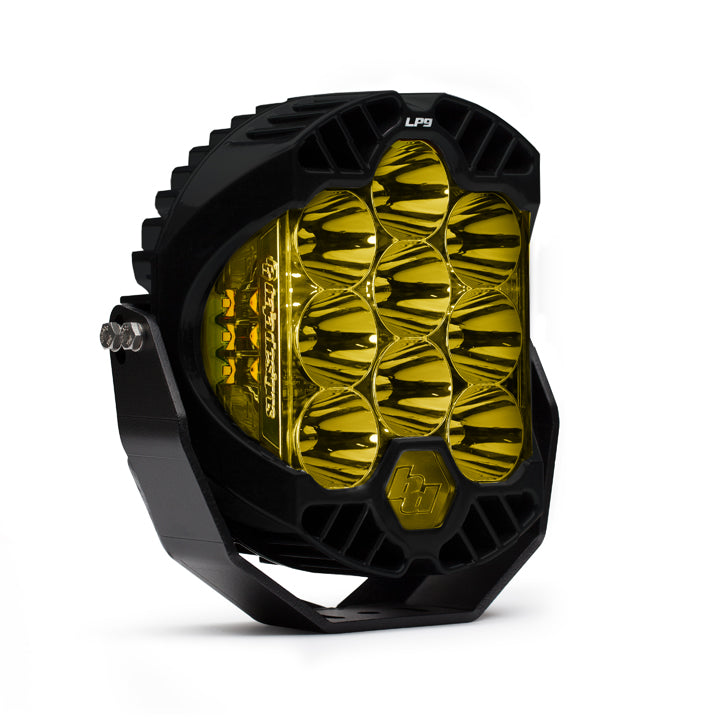

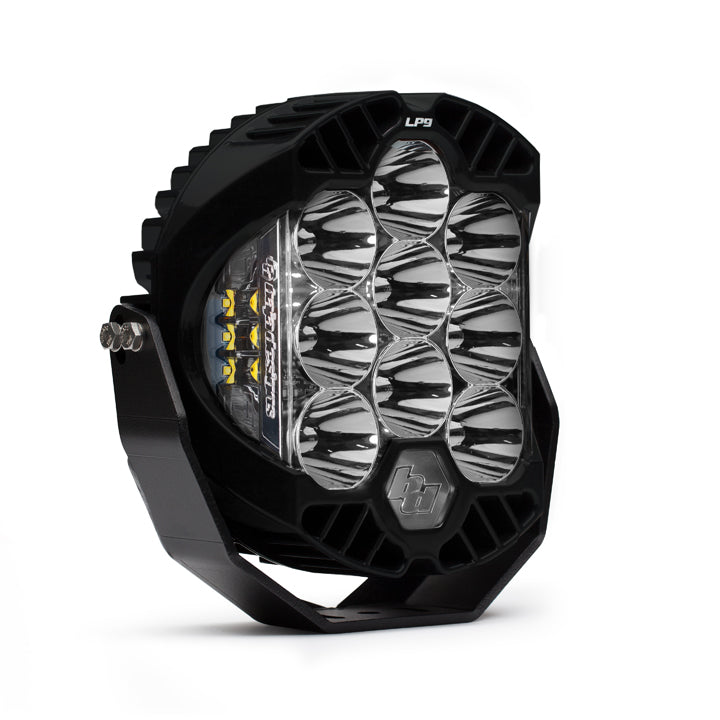

A forward-facing beam alone can leave the area to either side of the vehicle less visible. The LP9 Sport adds peripheral light alongside its forward beam. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. Baja Designs pods use nine forward-projecting LEDs and six peripheral LEDs. Integrated Peripheral Technology spreads usable light across 200 degrees, while uService lets you change the lens pattern and color.
Key Features
Nine forward-projecting LEDs produce 9,421 lumens
Six peripheral LEDs produce 2,302 lumens across a 200-degree spread
uService allows lens pattern and color changes
Direct Ducted Cooling manages heat under stress
Simple on/off operation without a high or low setting
Hardcoated polycarbonate lens and powder-coated cast aluminum housing
Stainless steel mounting hardware
Built To Solve: LP9 Sport Forward and Peripheral Lighting
Lights the area beside the forward beam with six peripheral LEDs.
Casts usable peripheral light across a 200-degree spread.
Lets you change the lens pattern or color as driving conditions change.
Uses Direct Ducted Cooling to manage heat under stress.
Best For: Buyers Choosing Universal LED Pod Lights
Drivers looking for a full-size pod with forward and peripheral light.
Buyers who prefer simple on/off operation over high and low modes.
Drivers who want to change the lens pattern or color later.
Builders who can accommodate an 8-inch-high, 8-inch-long light.
Specifications
Light quantity: 1
Forward output: 9,421 lumens, 9 LEDs
Peripheral output: 2,302 lumens, 6 LEDs, 21 watts
Peripheral spread: 200 degrees
Forward wattage: 88.320 W
Amperage: 6.400 A forward; 1.520 A secondary
Dimensions: 8 in. high × 8 in. long × 3.250 in. deep
Weight: 6.500 lb.
Lens material: Hardcoated polycarbonate
Housing material: Powder-coated cast aluminum
Connector: DT06-4S Deutsch
Water resistance: IP69K; waterproof up to 9 ft. and pressure washable
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
Does the LP9 Sport come with a wiring harness?
No. A wiring harness is not included.
What mounting hardware does the LP9 Sport use?
The mounting hardware is stainless steel.
How much space does the LP9 Sport occupy?
The light is 8 inches high, 8 inches long and 3.250 inches deep.
Can the LP9 Sport switch between high and low output?
No. It operates with a simple on/off function and has no high or low setting.
How should I choose between the Sport and Pro or Racer editions?
Choose the Sport for simple on/off operation. The Pro and Racer editions offer high/low operation and an amber backlight.
Can I change the beam pattern or lens color later?
Yes. uService lets you change the lens pattern and color for driving conditions or a lens refresh.
Why Baja Designs
Baja Designs uses uService on the LP9 Sport so the lens pattern and color can be changed.
Choose Your Baja Designs LP9 Sport
Choose a beam pattern and lens color for your LP9 Sport light pod.
