A forward-focused light can leave the areas beside your vehicle outside its beam. Seeing those peripheral zones calls for light directed to the sides as well as ahead. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. Baja Designs pods use Integrated Peripheral Technology to spread light through 200 degrees while forward-projecting LEDs illuminate the route ahead. Air passes through the housing and over the rear heat sinks for cooling.
Key Features
8,857 total raw lumens, with 6,885 forward-projecting raw lumens
1,972 raw lumens of dedicated peripheral lighting
Integrated Peripheral Technology delivers a 200-degree light spread
Direct Ducted Cooling routes air through the housing and over the rear heat sinks
Replaceable lenses and optics through the uService design
Clear or amber lens and backlight color options vary by configuration
IP69K water resistance and IK10 impact resistance
Built To Solve: LP4 Pro Forward and Peripheral Lighting
Lights areas to the sides as well as the route ahead.
Directs airflow over the rear heat sinks to improve cooling.
Lets you replace the lens and optics rather than treating them as fixed parts.
Offers backlight colors for display use; red, blue and green are restricted to exhibition use.
Best For: Riders Choosing Universal LED Pod Lights
Vehicle owners looking for forward and peripheral light from one pod.
Buyers comparing driving/combo and spot beam options.
Builders selecting a clear or amber lens for their lighting setup.
Show-vehicle owners considering a colored backlight.
Buyers prepared to source a separate wiring harness.
Specifications

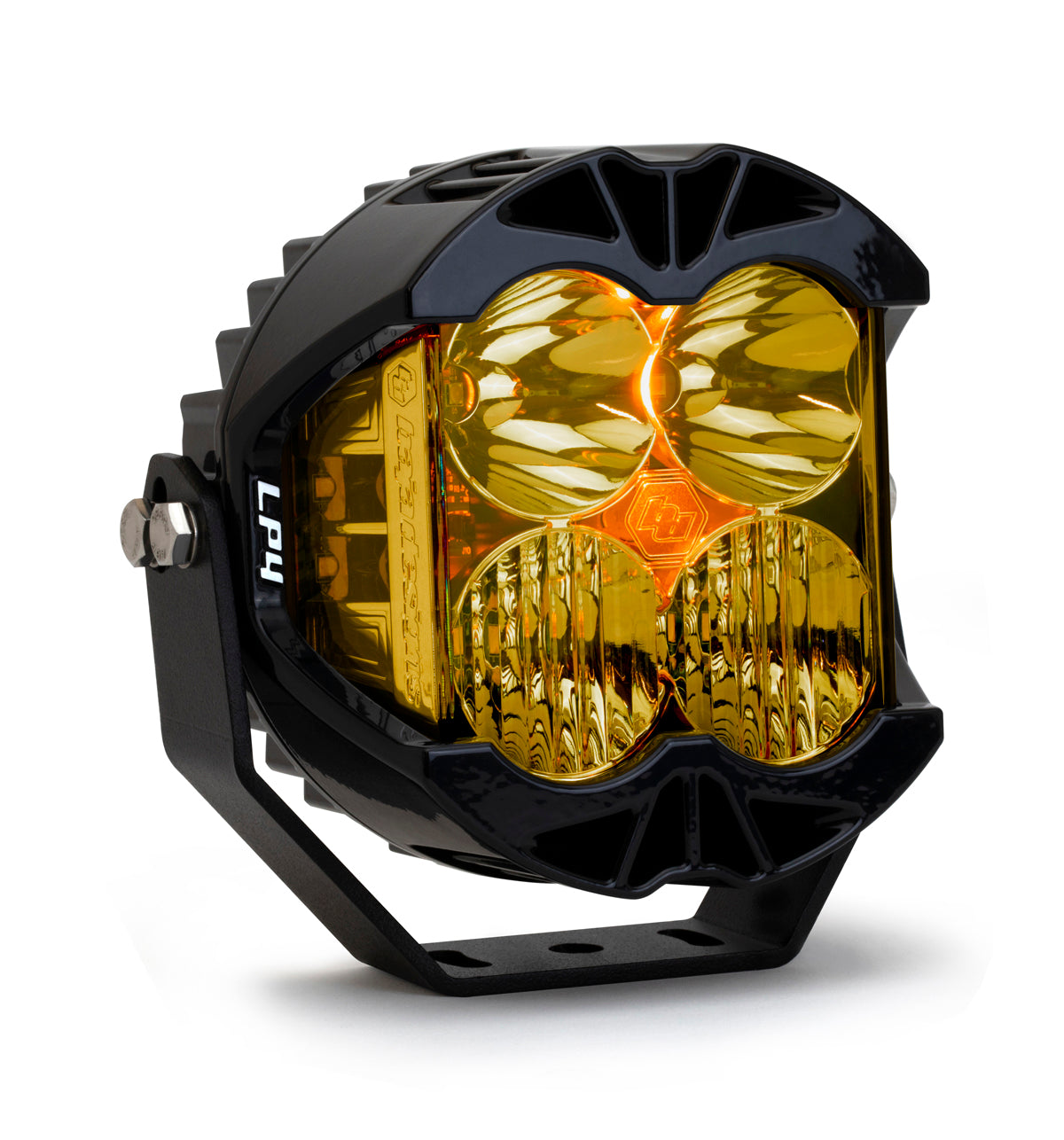

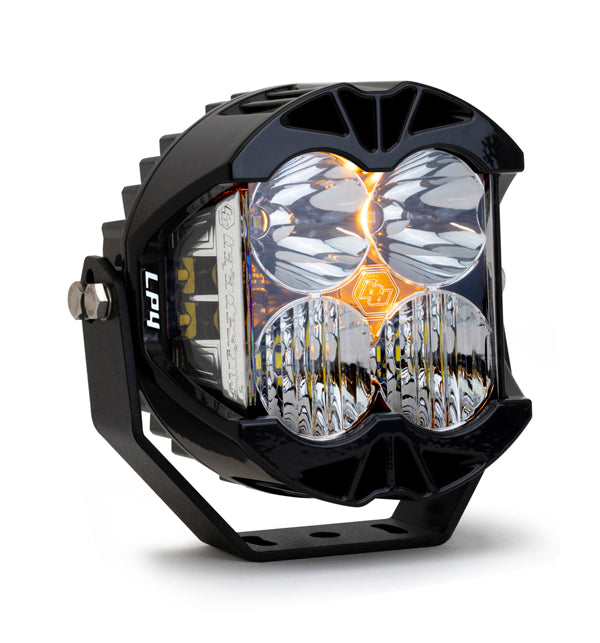

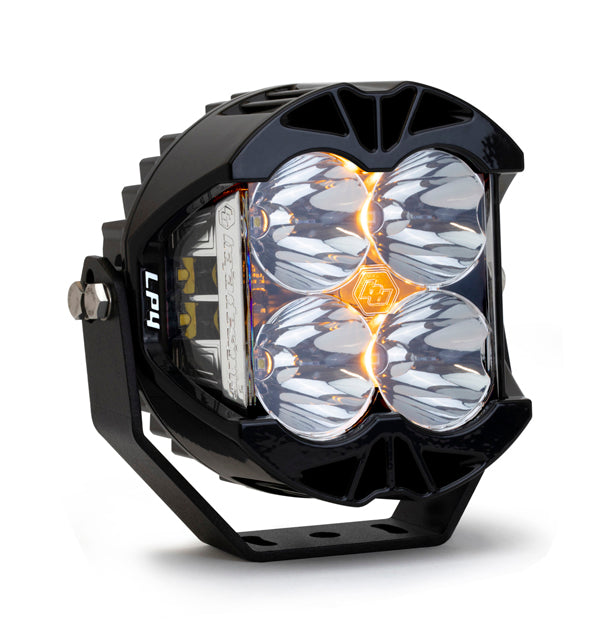

Product type: LP4 Pro LED light pod
Total brightness: 8,857 raw lumens
Peripheral spread: 200 degrees
Wattage: 75.900 W
Amperage: 5.500 A
Dimensions: 5.1 in. long × 5.1 in. high × 3.2 in. deep
Weight: 2.8 lb
Connector: DT06-4S Deutsch
Water resistance: IP69K; waterproof up to 9 ft and pressure washable
Universal; no vehicle-specific applications listed
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
Does the LP4 Pro come with a wiring harness?
No. The wiring harness must be obtained separately.
What connector does the LP4 Pro use?
It uses a DT06-4S Deutsch terminal connector.
How much light does the LP4 Pro produce?
The pod produces 8,857 total raw lumens, with 1,972 raw lumens dedicated to peripheral lighting.

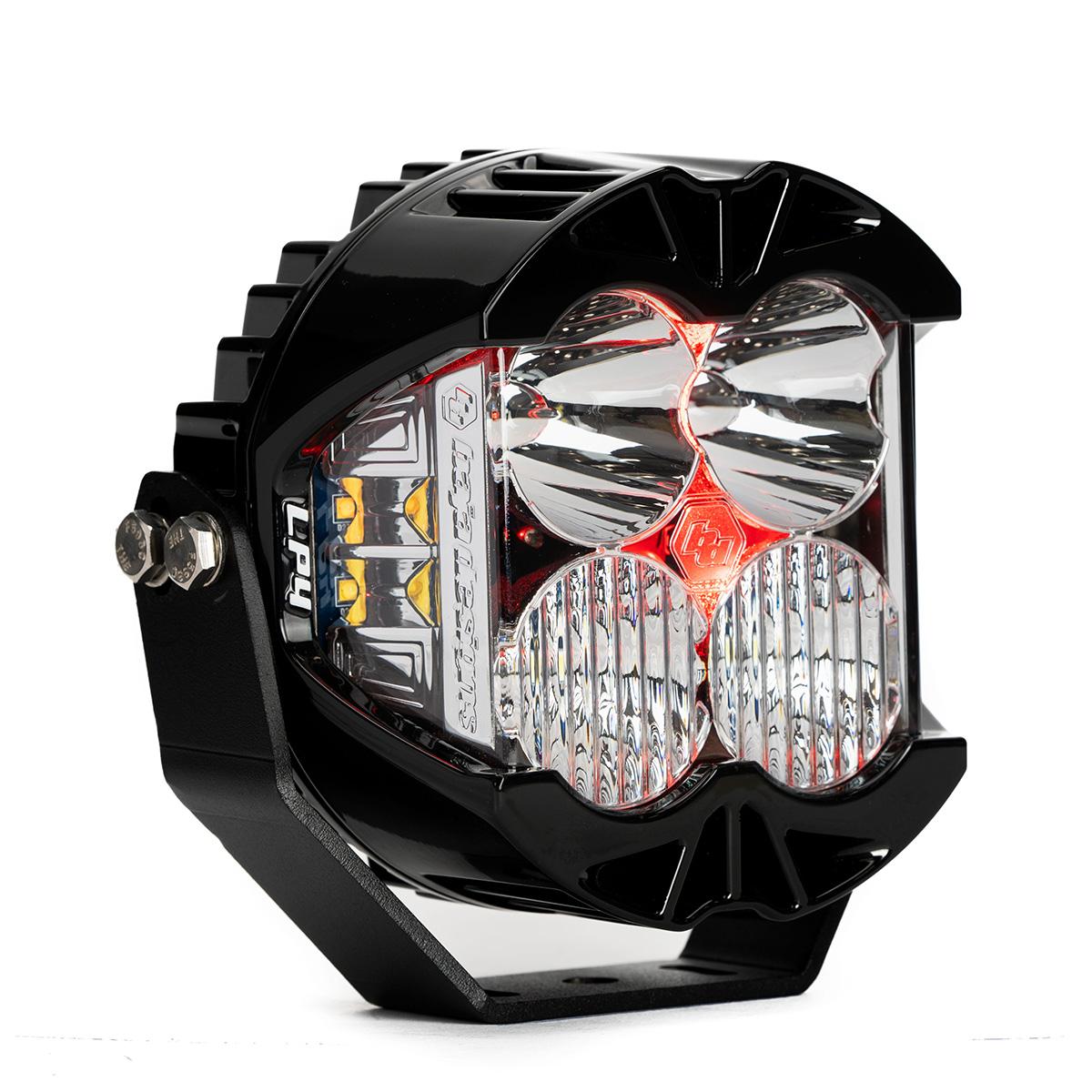

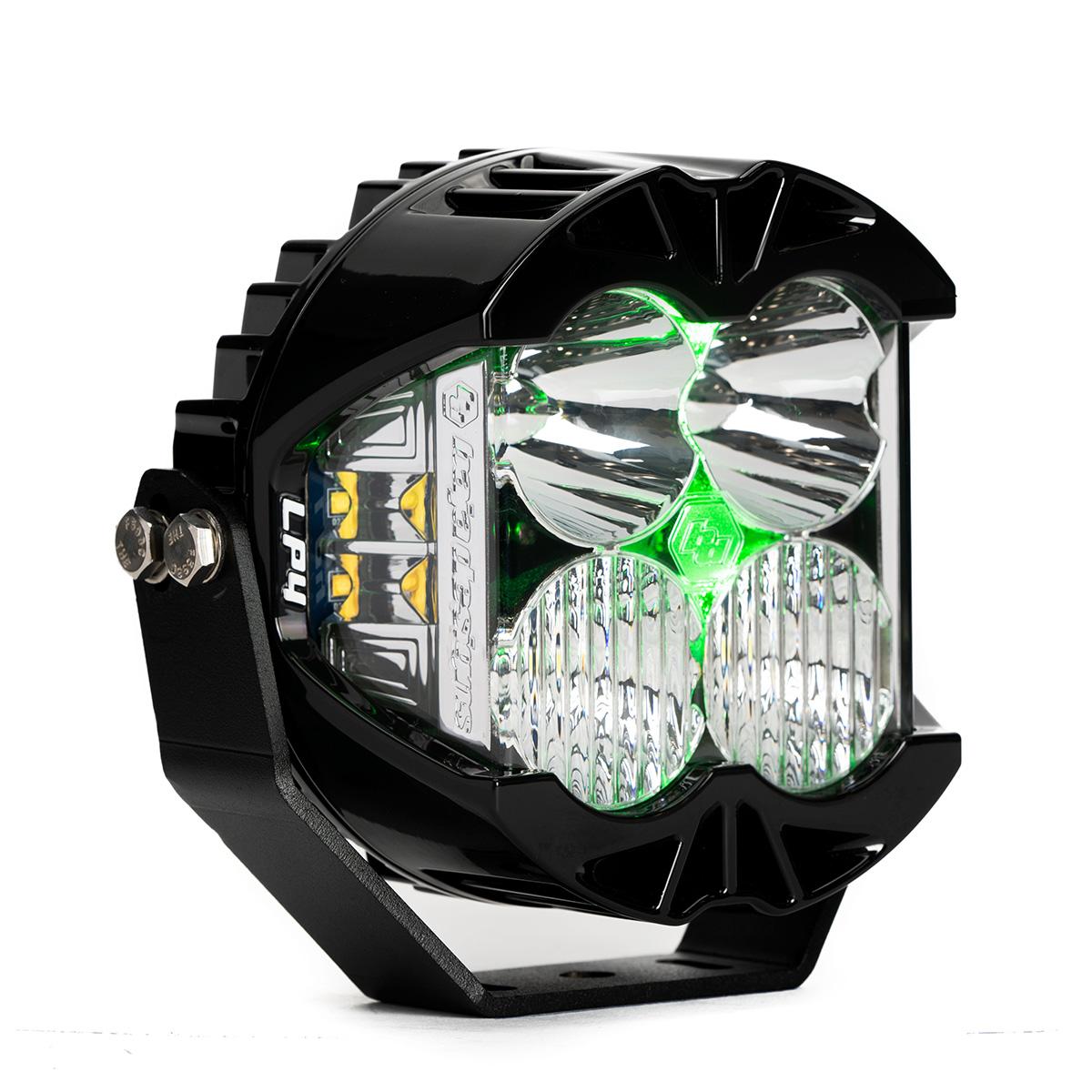

Which backlight colors can I choose for the LP4 Pro?
Amber, red, blue and green backlights are offered. Check the selected lens and beam configuration for the available color.
Will this fit my machine?
Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.
Why Baja Designs
Baja Designs uses Integrated Peripheral Technology for side lighting and Direct Ducted Cooling to move air over the LP4 Pro's rear heat sinks.
Choose Your LP4 Pro Light Pod
Select an LP4 Pro beam, lens and backlight configuration from Dunes 2 Dezert SXS.
