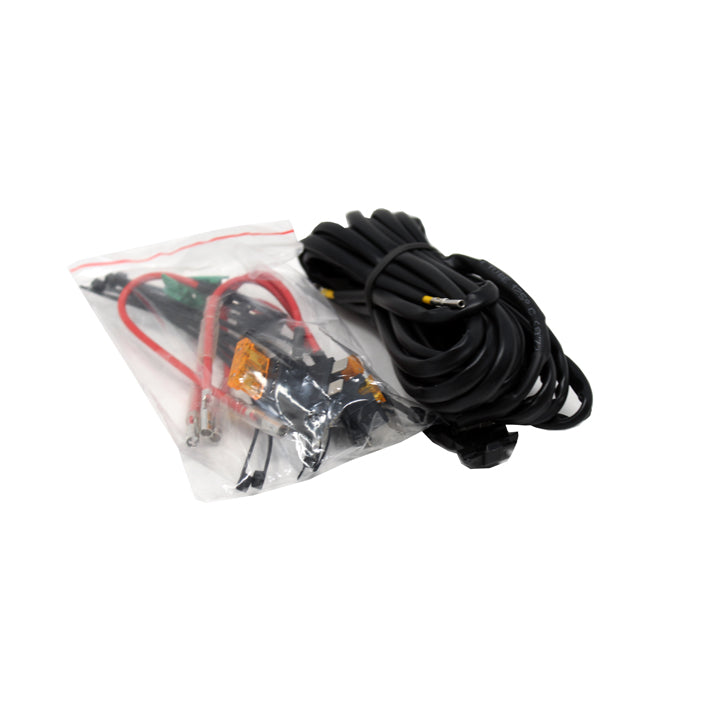

An existing LP light harness without a backlight wiring connection leaves the LP lights' backlighting without a power connection. Listed for: Baja Designs LP Series lights, excluding Sport models. Fitment is not guaranteed on unlisted applications. The harness connects LP backlighting to a fuse panel or a splice to keyed power. Bullet connectors, fuse taps and an alternate splice connector support the connection.
Key Features
Add-on wiring for LP Series backlighting
Designed to reach a fuse panel or a splice to keyed power
Four common fuse taps for fuse-panel connections
Alternate splice connector for a keyed-power connection
Bullet terminal connectors
Universal application for LP Series lights other than Sport models
Built To Solve: LP Series Backlight Power Connection
Adds backlight wiring to an existing LP light harness.
Reaches a fuse panel or a splice to keyed power.
Offers four common fuse taps and an alternate splice connector for the power connection.
Uses bullet connectors at the harness terminals.
Best For: LP Series Light Owners Adding Backlighting
Owners with an existing LP light harness but no backlight wiring solution.
LP Series users planning a fuse-panel connection.
LP Series users planning a splice to keyed power.
Owners of compatible LP Series lights other than Sport models.
Specifications
Application: LP Series, excluding Sport models
Fuse taps: 4
Terminal connectors: Bullet connectors
Application type: Universal
Switch: Not included
Manufacturer part numbers: 640176
What's in the Box
Detailed instructions
Four common fuse taps
Alternate splice connector
Zip ties
Fitment
Baja Designs LP Series lights, excluding Sport models
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
Will this harness work with LP Series Sport lights?
No. LP Series Sport models are excluded.
Where can the backlight harness connect to power?
It can reach a fuse panel or a splice to keyed power.
How many fuse taps are supplied?
There are four common fuse taps.
Is this a replacement for an existing light harness?
It is designed as an add-on for a current harness that lacks a backlight wiring solution.
Will this fit my machine?
Universal fit - not built for one specific make or model. Fitment is not guaranteed on unlisted applications, so confirm mounting space and wiring on your machine before ordering.
Why Baja Designs
Baja Designs offers this add-on harness for the backlighting function on compatible LP Series lights.
Connect LP Series Backlighting
Order the Baja Designs LP Series backlit add-on wiring harness from Dunes 2 Dezert SXS.
