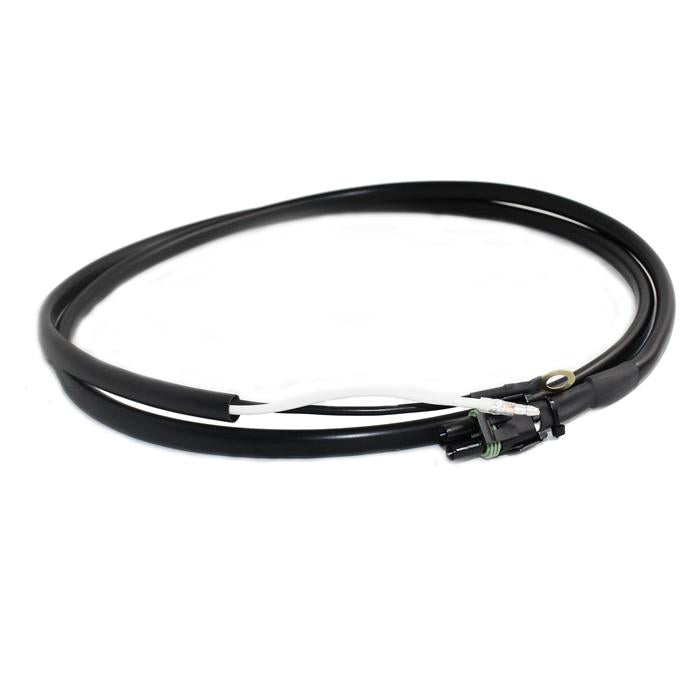

Connecting auxiliary lights to factory upfitter switches or an aftermarket switch panel requires wiring between the controls and the lights. Universal fit - not built for one specific make or model, so confirm mounting space and wiring on your machine before ordering. The Baja Designs upfitter harness uses splice connectors and one two-pin connection to simplify wiring Baja Designs lights to the switch setup.
Key Features
Designed for vehicles with factory upfitter switches
Can connect to Switch Pros or sPOD switch panels
Application specified for Squadron, S2 and S1 lights
One two-pin terminal connection
Splice connector terminal type
Universal harness configuration
Built To Solve: Factory Upfitter Switch Light Wiring
Connect Baja Designs lighting to a factory upfitter switch setup.
Use splice connectors to wire the harness into a switch setup.
Connect a light through the harness's two-pin terminal.
Use a separate two-pin splitter when connecting two Squadron, S2 or S1 lights to one harness.
Best For: Factory Upfitter Switch and Switch Panel Users
Drivers wiring Baja Designs lights to factory upfitter switches
Universal; designed for vehicles with factory upfitter switches, including Dodge, Ford and Jeep
Fitment is based on current product data for this part and is not guaranteed on unlisted applications. If you don't see your exact setup, contact us and we'll confirm fitment before you order.
FAQ
Does the harness come with a switch?
No. The harness does not come with a switch.
What type of terminals does the harness use?
It uses splice connectors for the terminal type.
What do I need to connect two Squadron, S2 or S1 lights to one harness?
Use a separate two-pin splitter for two of those lights on a single harness.
How many two-pin connections does the harness have?
It has one two-pin terminal connection.
Can I use this harness with a Switch Pros or sPOD panel?
Yes. It can be used to connect those switch panels.
Why Baja Designs
Baja Designs specifies this upfitter harness for Squadron, S2 and S1 lights and designs it for factory upfitter switch setups.
Wire Baja Designs Lights to Upfitter Switches
Order the Baja Designs upfitter wiring harness from Dunes 2 Dezert SXS.
